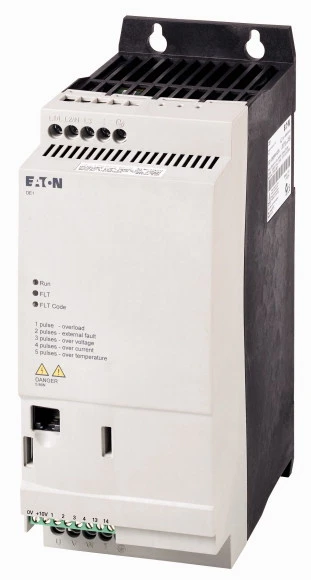

400V Ac 8.5A 3 Phase PowerXL DE1 Variable Speed Starter
400V Ac 8.5A 3 Phase PowerXL DE1 Variable Speed Starter
400V Ac 8.5A 3 Phase PowerXL DE1 Variable Speed Starter - Image 2
400V Ac 8.5A 3 Phase PowerXL DE1 Variable Speed Starter - Image 3
400V Ac 8.5A 3 Phase PowerXL DE1 Variable Speed Starter - Image 4

400V Ac 8.5A 3 Phase PowerXL DE1 Variable Speed Starter

£423.62 Incl. VAT

The Moeller series PowerXL DE1 was designed for customers who have basic applications but still require variable frequency and advanced motor protection. The PowerXL DE1 allows customers to simplify their design and reduce installation and commissioning time while introducing an innovative solution to their system. · · · Fit & forget design makes this style of starter perfect for less complicated installations · · Available in power rating varying from 0.25kW to 7.5kW, with both single & three phase options available · · Utilises SmartWire-DT technology, making installation even simpler to other compatible products · · Fitted with a radio interference suppression filter · · Compact (85mm width), DIN-rail mounting or screw fixing. · · Depth: 186mm · · Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: DE1-348D5FN-N20N Categories: , , Brand: Part Number: 2500808310

Description

Technical Specifications  Technical Specifications Frequency converter =< 1 kV Mains frequency 50/60 Hz Degree of protection (IP rating) IP20 Type of converter U converter Number of phases input 3 Number of phases output 3 Height 230 mm Depth 169 mm Width 90 mm Number of HW-interfaces RS-422 0 Number of HW-interfaces RS-485 1 Number of HW-interfaces RS-232 0 Number of HW-interfaces industrial Ethernet 0 Number of analogue inputs 1 Number of digital inputs 4 Number of digital outputs 0 Power consumption 120 W Number of HW-interfaces serial TTY 0 Number of analogue outputs 0 Number of HW-interfaces USB 0 Number of HW-interfaces parallel 0 Number of HW-interfaces other 0 Number of HW-interfaces PROFINET 0 Max. output frequency 300 Hz Max. output at linear load at rated output voltage 4 kW With optical interface No Supporting protocol for INTERBUS No Mains voltage 380 – 480 V Nominal output current I2N 8.5 A Relative symmetric net frequency tolerance 10 % Relative symmetric net voltage tolerance 10 % Max. output at quadratic load at rated output voltage 4 kW Max. output voltage 500 V Supporting protocol for KNX No Supporting protocol for CAN No Supporting protocol for TCP/IP No Supporting protocol for PROFIBUS No Supporting protocol for SERCOS No Supporting protocol for other bus systems Yes Supporting protocol for SUCONET No Supporting protocol for DeviceNet No Supporting protocol for BACnet No Supporting protocol for PROFINET IO No Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No Application in domestic- and commercial area permitted Yes Supporting protocol for MODBUS Yes Supporting protocol for ASI No Supporting protocol for Data-Highway No Supporting protocol for PROFINET CBA No Supporting protocol for Foundation Fieldbus No Supporting protocol for EtherNet/IP Yes Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for INTERBUS-Safety No With PC connection Yes 4-quadrant operation possible No Integrated breaking resistance No Application in industrial area permitted Yes With control unit No Supporting protocol for LON No · Technical Data Sheet – Click to Download
