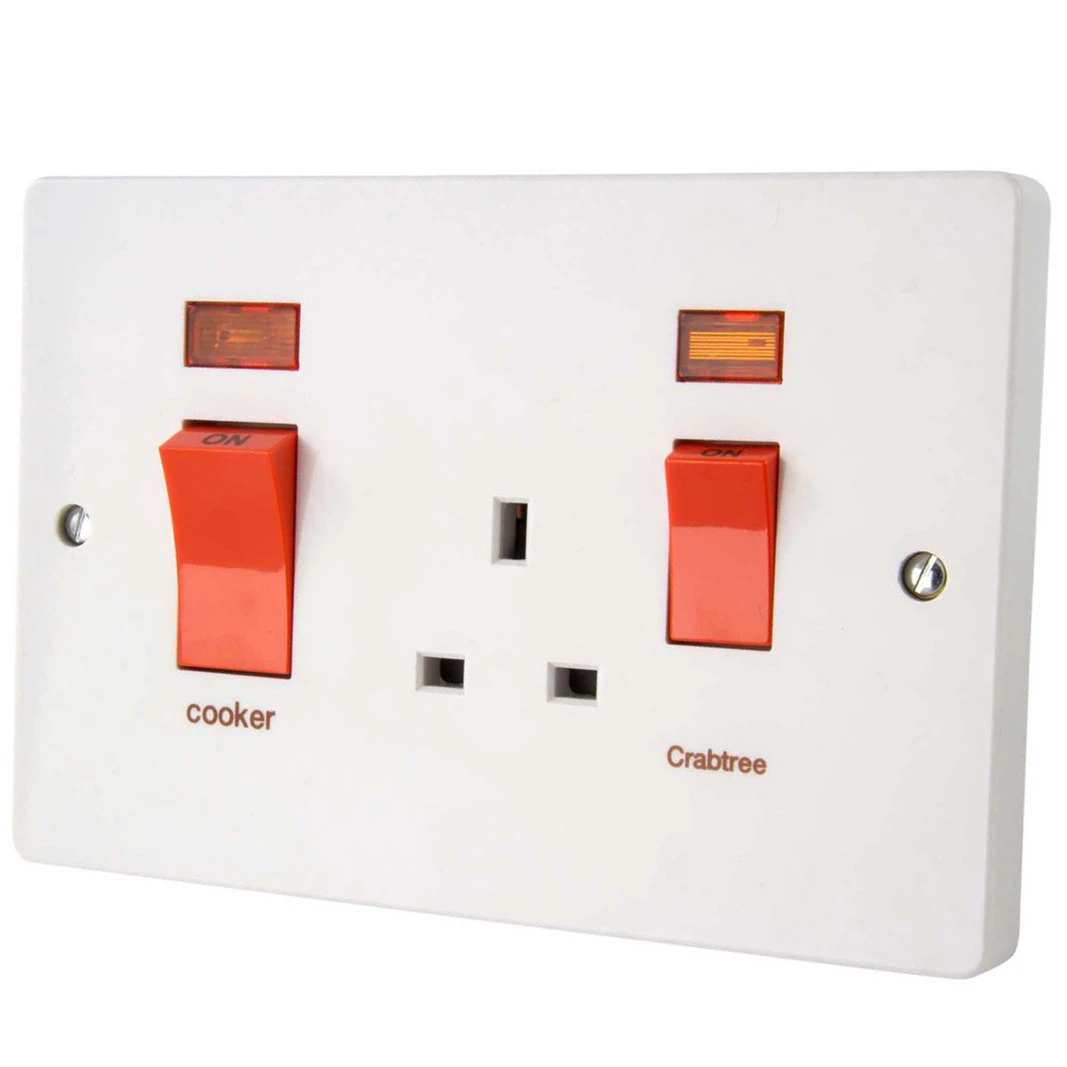

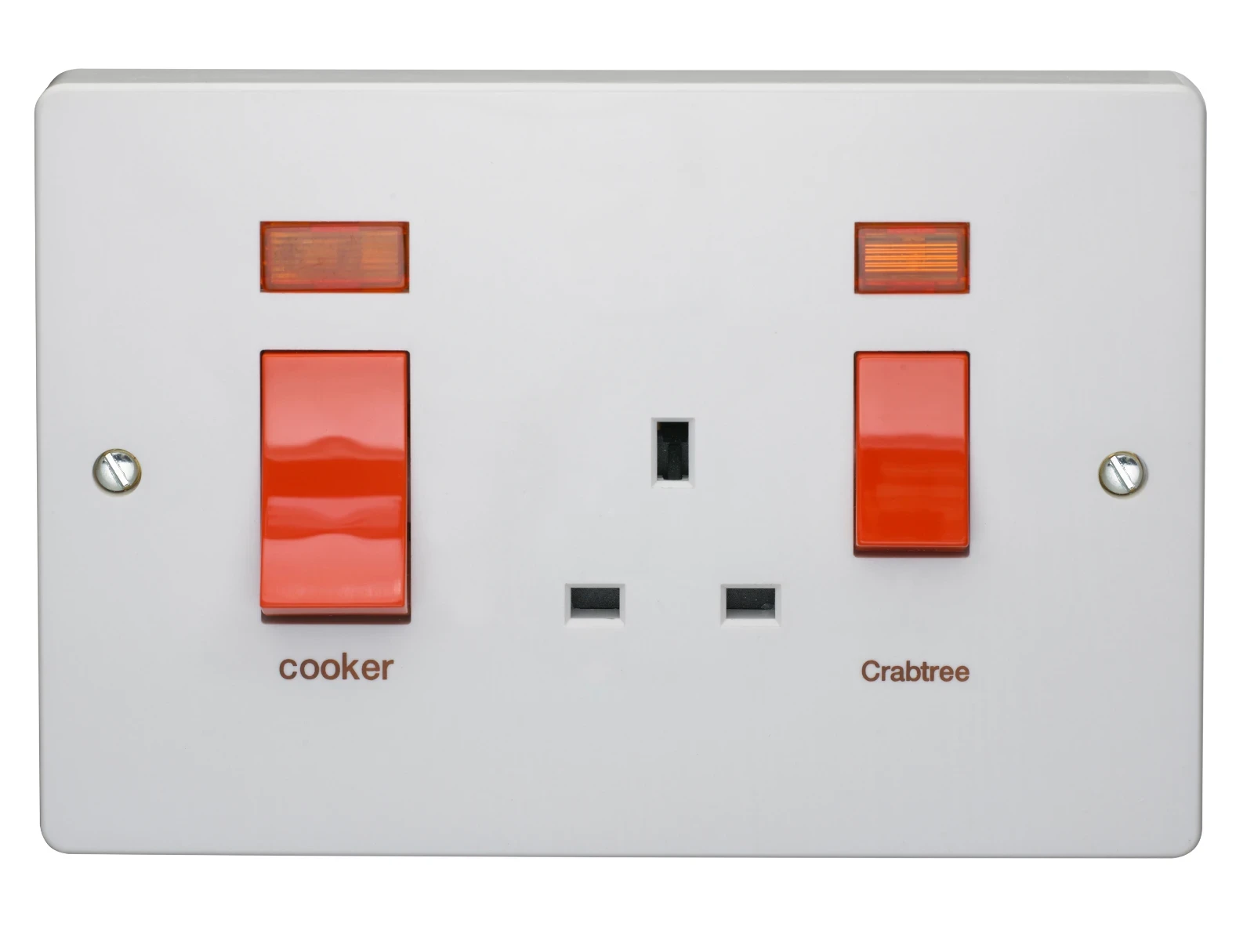

45A Cooker Control Unit With Neon (168mm X 114mm)
45A Cooker Control Unit With Neon (168mm X 114mm)
45A Cooker Control Unit With Neon (168mm X 114mm) - Image 2
45A Cooker Control Unit With Neon (168mm X 114mm) - Image 3

45A Cooker Control Unit With Neon (168mm X 114mm)

£45.66 Incl. VAT

The installation of cooker switches or cooker control units is a useful alternative to the electrical installation of a cooking appliance via a plug and socket outlet. For cooker switches, electrical installations must comply with BS EN 60669-1+A2, and for cooker control units it is BS 4177. · · · Double Pole Switching · · Neon Indicator · · Safety Shutter System · · IP rating is IP2X · · Tested to 250 Volt · · Crabtree 45A Cooker Control unit are all type tested to BS 4177 & BS 1363-2 · · Terminal capacity: 2 x 6mm2, 1 x 10mm2 or 1 x 16mm2 · · Orange Neon Indicator

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 4520/31 Categories: , , Brand: Part Number: 2500005878

Description

Technical Specifications  Technical Specifications Switch Degree of protection (IP rating) IP2X Material Plastic Surface finish Glossy Colour White Nominal voltage 250 V Number of module spaces (modular system) 0 Rated current 45 A Recess depth 24 mm Width of device 168 mm With mounting plate Yes Push button switch Yes Feedback-signal contact No Halogen free Yes Height of device 114 mm Number of rockers/gangs 2 Minimum depth of back box 47 mm Washing machine switch No · Technical Data Sheet – Click to Download
