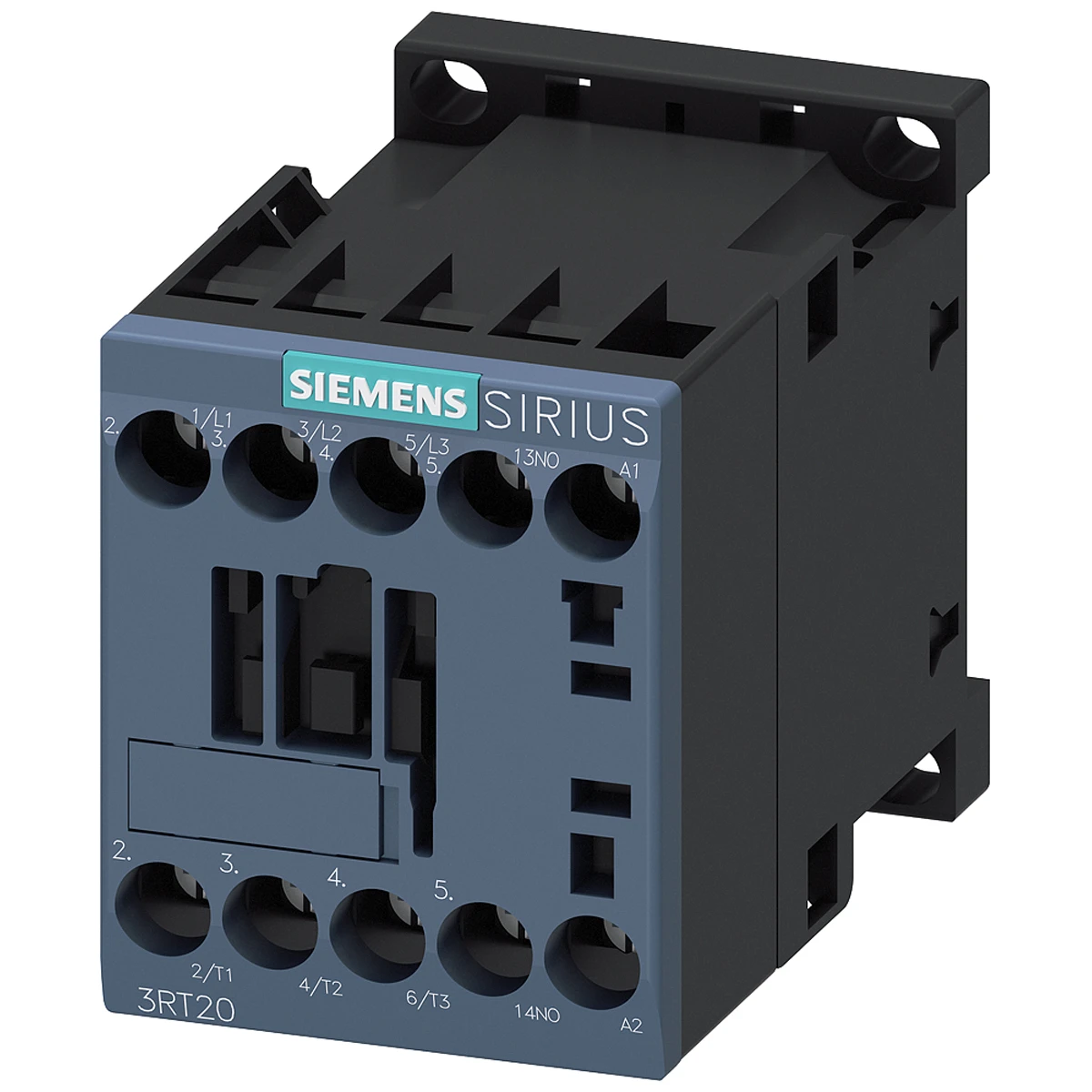

Siemens 4kW/400V 1NO 110V AC 3P Screw Terminal
Siemens 4kW/400V 1NO 110V AC 3P Screw Terminal
Siemens 4kW/400V 1NO 110V AC 3P Screw Terminal - Image 2
Siemens 4kW/400V 1NO 110V AC 3P Screw Terminal - Image 3

Siemens 4kW/400V 1NO 110V AC 3P Screw Terminal

£39.35 Incl. VAT

Siemens size S00 power contactor with 1NO auxiliary contact. Contactor can be rotated +/-180° and be tilted forward/backward +/- 22.5° when on vertical mounting surface. · · · Control supply voltage: 110V AC · · Operating current: 9A (at 400V rated value) · · Operating power: 4kW (at 400V rated value) · · Screw clamp terminals: 2x (0.5 – 1.5mm²), 2 x (0.75 – 2.5mm²), 2 x 4mm² · · Mounting type: Screw/Snap-on mounting onto 35mm standard rail · · Operating voltage: 690V AC · · Opening/closing delay: 3.5-14ms/ 9-35ms · · Mechanical service life: 30000000 cycles · · Ambient operating temperature: -25°C to 60°C · · IP20 Degree of protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RT2016-1AF01 Categories: , , , , Brand: Product Code: 1050391860

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Voltage type for actuating AC Type of electrical connection of main circuit Screw connection Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 4 kW Number of auxiliary contacts as normally open contact 1 Rated operation current Ie at AC-4, 400 V 8.5 A Rated operation power NEMA 3.67749 kW Rated operation current Ie at AC-1, 400 V 22 A Rated operation current Ie at AC-3, 400 V 9 A Rated control supply voltage at AC 50 Hz 400 – 400 V Rated operation power at AC-4, 400 V 2 kW Rated control supply voltage at AC 60 Hz 110 – 110 V Modular version Yes · Technical Data Sheet – Click to Download
