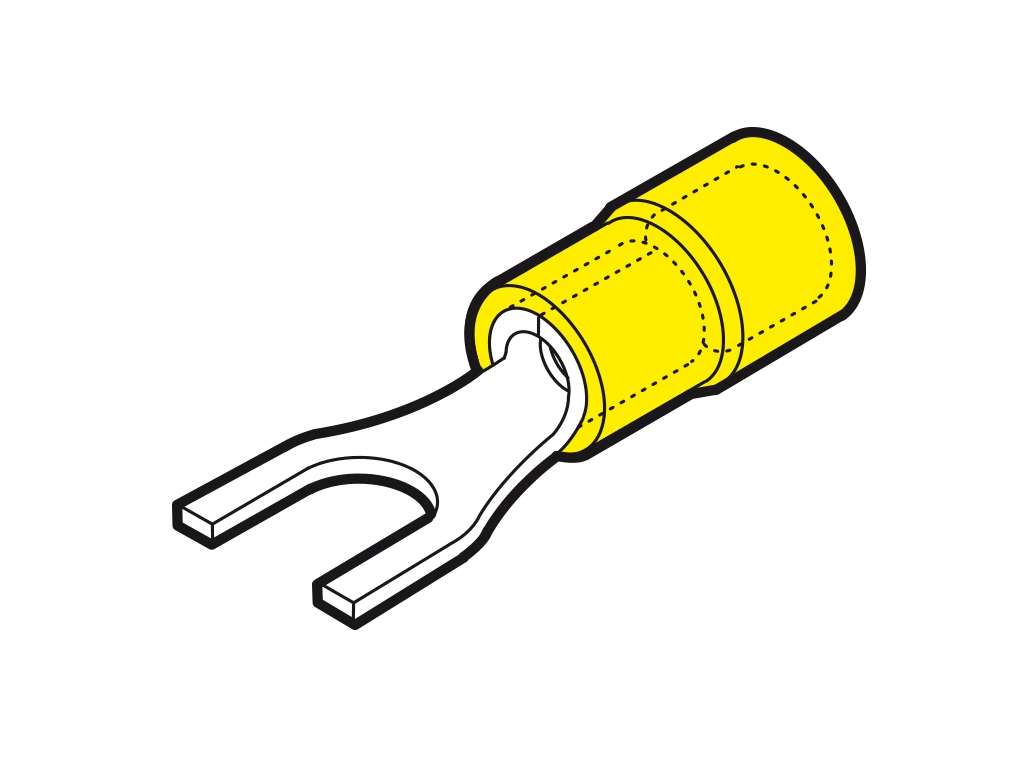

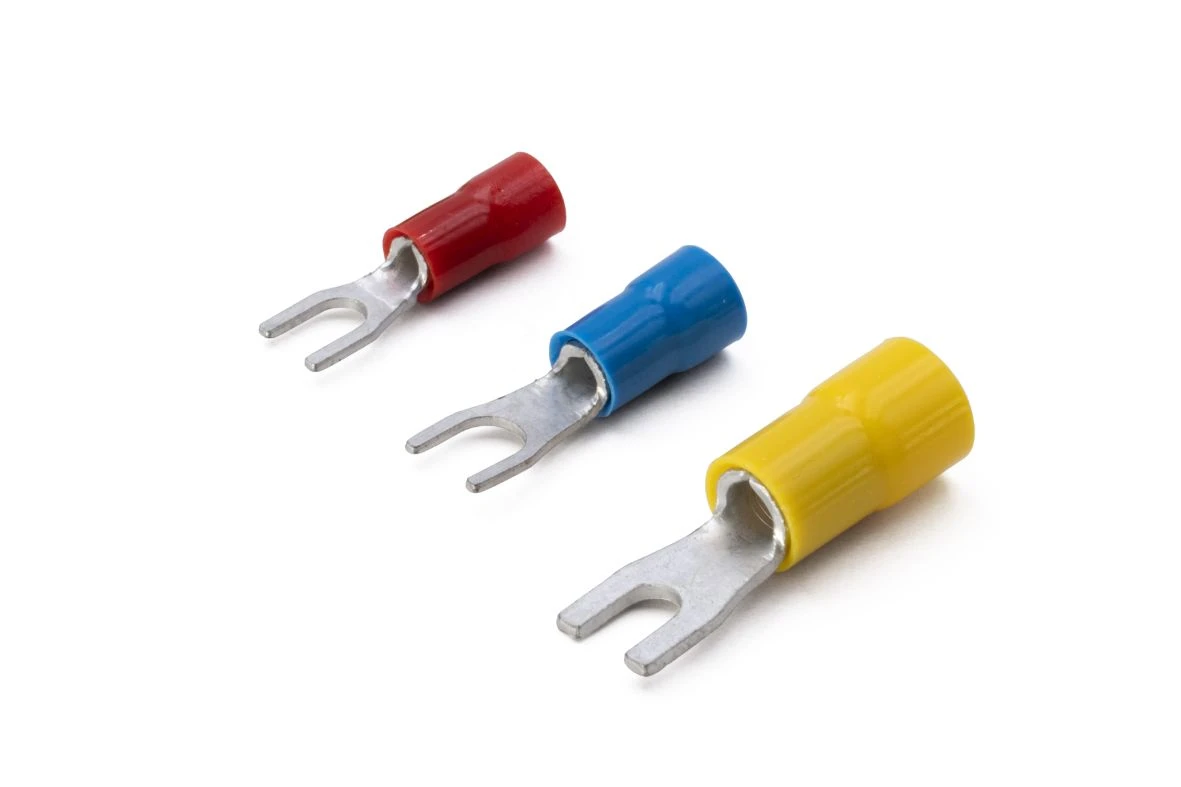

Cembre 4mm²-6mm² fork terminal 5.3mm yellow [Pack of 100]

Brand: CembreProduct code: GF-U5Go Magpie Ref: 5060062305398

4mm²-6mm² PVC insulated fork terminal 5.3mm fork width yellow · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Hole/Stud Size: 5 mm · · Tab/Pin Size: 12.4 mm · · Insulation Material: PVC · · Diameter: 6.7 mm

£0.16inc VAT£0.13 ex VAT
In stock — 1000 available
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Material Copper Sleeve form Short Flange shape Fork shape Colour insulation Yellow Insulation Polyvinyl chloride (PVC) Bolt dimension (metric) 5 Surface protection Tinned Max. current (Imax) – A Suitable for flat conductors No Nominal cross section 4 – 6 mm² Suitable for high temperatures (to 650 °C) No Suitable for fine strand conductors Yes Suitable for insulated varnish No Suitable for round conductors Yes Useful for stranded conductors Yes Suitable for solid cores No Reel packaging No For pull protected connections No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
