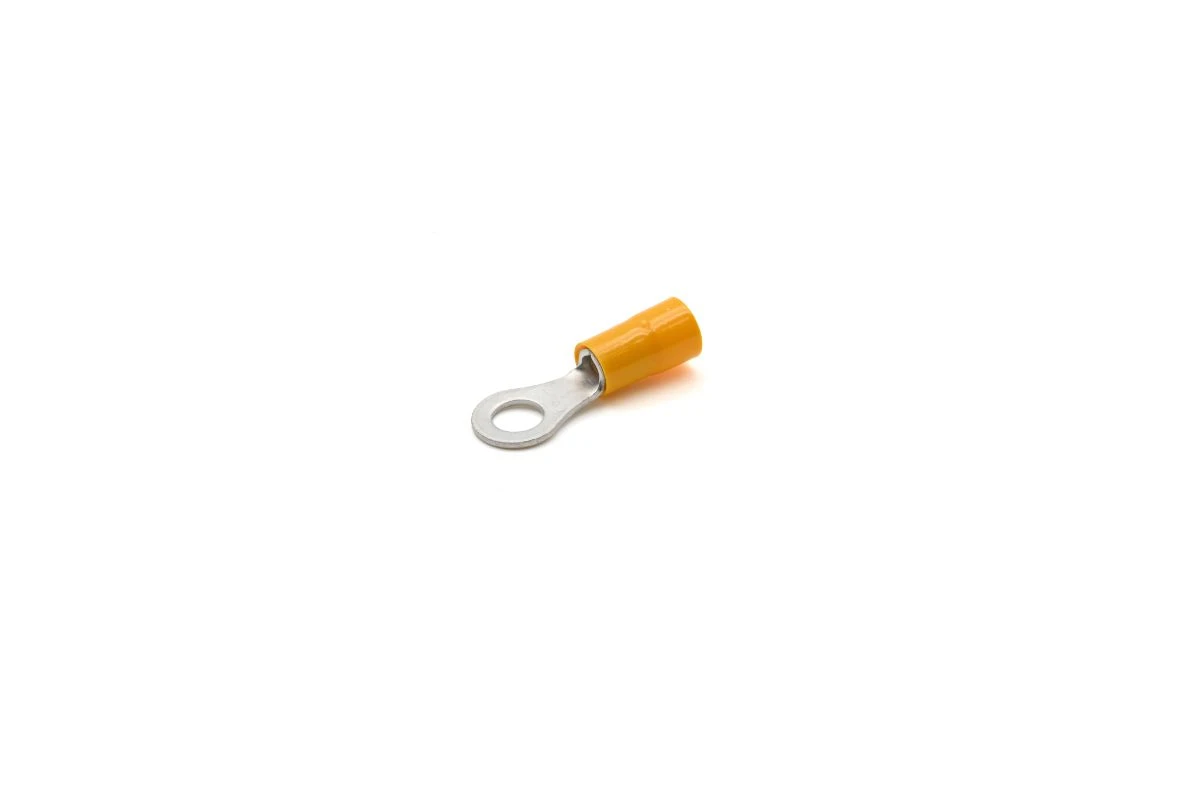

4mm²-6mm² Halogen Free Polycarbonate Insulated Ring Terminal M6 Stud Yellow
4mm²-6mm² Halogen Free Polycarbonate Insulated Ring Terminal M6 Stud Yellow
4mm²-6mm² Halogen Free Polycarbonate Insulated Ring Terminal M6 Stud Yellow - Image 2
4mm²-6mm² Halogen Free Polycarbonate Insulated Ring Terminal M6 Stud Yellow - Image 3
4mm²-6mm² Halogen Free Polycarbonate Insulated Ring Terminal M6 Stud Yellow - Image 4

4mm²-6mm² Halogen Free Polycarbonate Insulated Ring Terminal M6 Stud Yellow

£0.24 Incl. VAT

4mm²-6mm² Halogen free Polycarbonate insulated ring terminal M6 stud yellow · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Facilited Introduction of the conductor · · Halogen Free · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility

1300 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GP-M6 Categories: , , Brand: Part Number: 2500113237

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Material Copper Sleeve form Short Insulation PC Colour insulation Yellow Surface protection Tinned Flange shape Ring shape Suitable for insulated varnish No According to DIN No Suitable for solid cores No Suitable for fine strand conductors Yes AWG-range 12 – 10 Nominal cross section 0.25 – 1.5 mm² Bolt dimension (metric) 6 Max. current (Imax) – A Suitable for flat conductors No Suitable for high temperatures (to 650 °C) No Suitable for round conductors Yes Reel packaging No Useful for stranded conductors Yes For pull protected connections No · Technical Data Sheet – Click to Download
