Cable & Cable Management

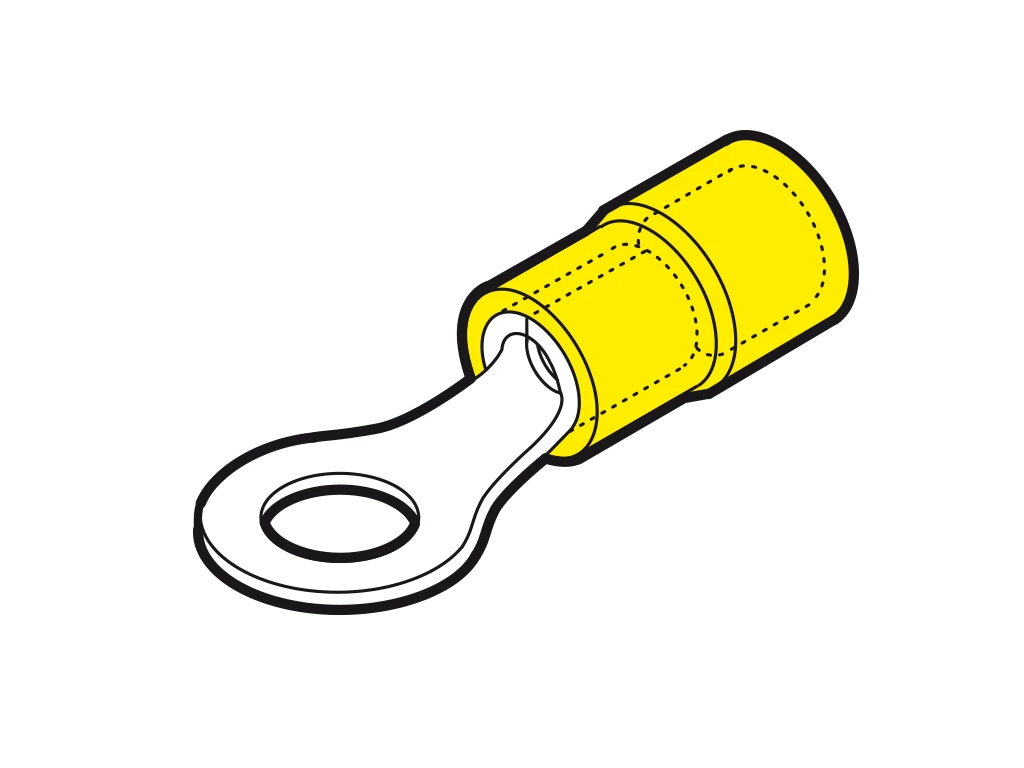

Cembre 4mm²-6mm² ring terminal M4 yellow [Pack of 100]

Brand: CembreProduct code: GF-M4Go Magpie Ref: 5060062332090

4mm²-6mm² PVC insulated ring terminal M4 stud yellow · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Diameter: 6.7 mm · · Length Min Max: 26.8 mm · · CE Approved: Y · · Standards: UL (Canada and US) UL 498A EN 1652

£0.14inc VAT£0.12 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Material Copper Colour insulation Yellow Insulation Polyvinyl chloride (PVC) Surface protection Tinned Bolt dimension (metric) 4 Flange shape Ring shape Nominal cross section 4 – 6 mm² Max. current (Imax) – A For pull protected connections No Reel packaging No Useful for stranded conductors Yes Suitable for solid cores No Suitable for round conductors Yes Suitable for flat conductors No Suitable for fine strand conductors No Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
