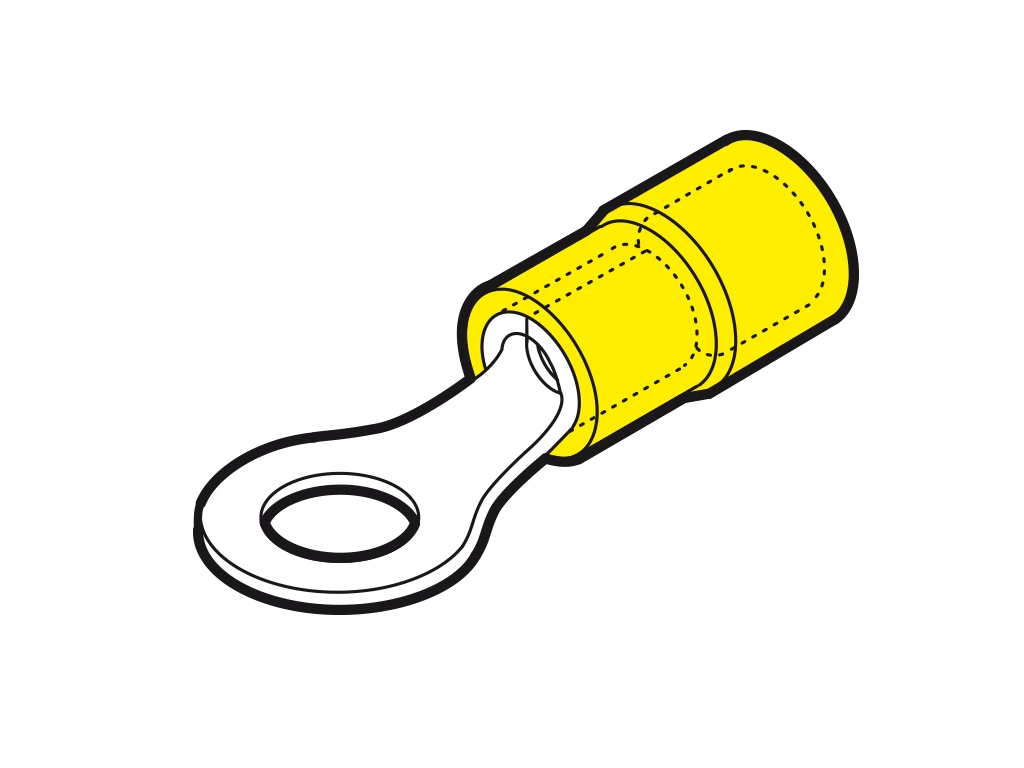

Cembre 4mm²-6mm² ring terminal M6 yellow [Pack of 100]
Cembre 4mm²-6mm² ring terminal M6 yellow [Pack of 100]
Cembre 4mm²-6mm² ring terminal M6 yellow [Pack of 100] - Image 2
Cembre 4mm²-6mm² ring terminal M6 yellow [Pack of 100] - Image 3
Cembre 4mm²-6mm² ring terminal M6 yellow [Pack of 100] - Image 4

Cembre 4mm²-6mm² ring terminal M6 yellow [Pack of 100]

Pack of 100

£15.84 Incl. VAT

4mm²-6mm² PVC insulated ring terminal M6 stud yellow · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Diameter: 6.7 mm · · Length Min Max: 30.8 mm · · CE Approved: Y · · Standards: UL (Canada and US) UL 498A EN 1652

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GF-M6 Categories: , , Brand: Product Code: 2500238962

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Material Copper Colour insulation Yellow Insulation Polyvinyl chloride (PVC) Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 6 For pull protected connections No Nominal cross section 4 – 6 mm² Max. current (Imax) – A Suitable for high temperatures (to 650 °C) No Suitable for fine strand conductors No Suitable for insulated varnish No Useful for stranded conductors Yes Reel packaging No Suitable for solid cores No Suitable for round conductors Yes Suitable for flat conductors No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
