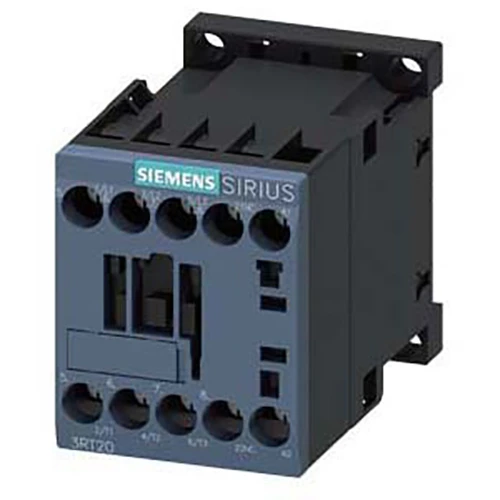

55Kw/400V 1Nc 110Vac 3P Screw Terminal
55Kw/400V 1Nc 110Vac 3P Screw Terminal
55Kw/400V 1Nc 110Vac 3P Screw Terminal - Image 2
55Kw/400V 1Nc 110Vac 3P Screw Terminal - Image 3

55Kw/400V 1Nc 110Vac 3P Screw Terminal

£46.55 Incl. VAT

Siemens 3RT2 Power Contactor offers various switching devices for the safe and functional switching of electrical loads. The contactors are equipped with AC and DC drive options. This contactor enables the voltage of the main circuit to be tapped directly. The communication-capable power contactor is supplied with a 24 V DC drive option. · · · Switching motorized loads · · Safe to touch according to DIN EN 50274 · · Finger-safe protection against electrical shock

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RT2017-1AF02 Categories: , , Brand: Part Number: 1050391869

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Voltage type for actuating AC Type of electrical connection of main circuit Screw connection Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 5.5 kW Rated operation current Ie at AC-3, 400 V 12 A Number of auxiliary contacts as normally closed contact 1 Rated operation power NEMA 5.51624 kW Rated operation power at AC-4, 400 V 2 kW Rated operation current Ie at AC-1, 400 V 22 A Rated operation current Ie at AC-4, 400 V 8.5 A Rated control supply voltage at AC 50 Hz 110 – 110 V Rated control supply voltage at AC 60 Hz 110 – 110 V Modular version Yes · Technical Data Sheet – Click to Download
