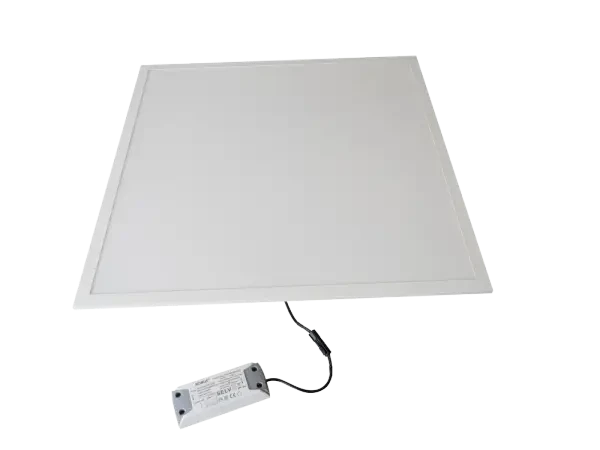

600x600mm White 4000K Dallas 40W LED Backlit Panel
600x600mm White 4000K Dallas 40W LED Backlit Panel
600x600mm White 4000K Dallas 40W LED Backlit Panel - Image 2
600x600mm White 4000K Dallas 40W LED Backlit Panel - Image 3

600x600mm White 4000K Dallas 40W LED Backlit Panel

£32.68 Incl. VAT

This Robus LED replacement for 4x18W T8 lay-in modular fits into standard sizes of ceiling grid – 15mm and 24mm and has a wide operating ambient temperature range of -20 degrees to +40 degrees. Suited for use in offices, shops, reception areas, restaurants, hotels, schools, hospitals with low glare rating of 22 and TP(b) rated diffuser in accordance with BS2782.0:2011 Method 508A. The 50,000 hour average lamp life is up to 5 times that of a standard fluorescent lamp. Very high efficacy of 104lm/W. Suitable for switching by PIR, Microwave or Photocell · · · Suitable for use in offices, shops, reception areas, restaurants, hotels, schools, hospitals · · Low glare rating of 22 · · TP(b) rated diffuser in accordance with BS2782.0:2011 Method 508A · · LED replacement for 4x18W T8 lay-in modular

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RDL40406060-01 Categories: , , Brand: Part Number: 2501313282

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Conductor cross section – mm² Width 595 mm Length 595 mm Height/depth 24 mm Number of poles – Number of lamps – Rated luminous flux acc. IEC 62722-2-1 – lm Total harmonic distortion 8.5 Power factor 0.97 Unified Glare Rating (UGR) 22 Colour temperature 4000 – 4000 K Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Nominal voltage 220 – 240 V Nominal current 180 – 180 mA Lamp power – – – W Maximum system power 39.2 W Luminaire efficacy 106 lm/W Rated life time L70/B50 at 25 °C 50000 h Light source included Yes Control gear included Yes Suitable for emergency lighting No Suitable for surface mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No With movement sensor No With light sensor No Suitable for suspended mounting Yes Dimming DSI No Dimming 0-10 V No Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 No Suitable for recessed mounting No With air slots No Suitable for wall mounting Yes Dimming leading edge No Dimming sine wave reduction No Dimming touch and dim No Dimming with push-button No Dimming potentiometer (integrated) No Dimming 1-10 V No Dimming depending on control gear No Suitable for light line configuration No Suitable for ceiling mounting No No dimming function Yes Dimming mains voltage modulation No Dimming programmable No Bluetooth operated No Dimming LineSwitch No Dimming manufacturer’s proprietary system No Dimming DMX No Dimming DALI No Dimming RF No Dimming trailing edge No Dimming Zigbee No
