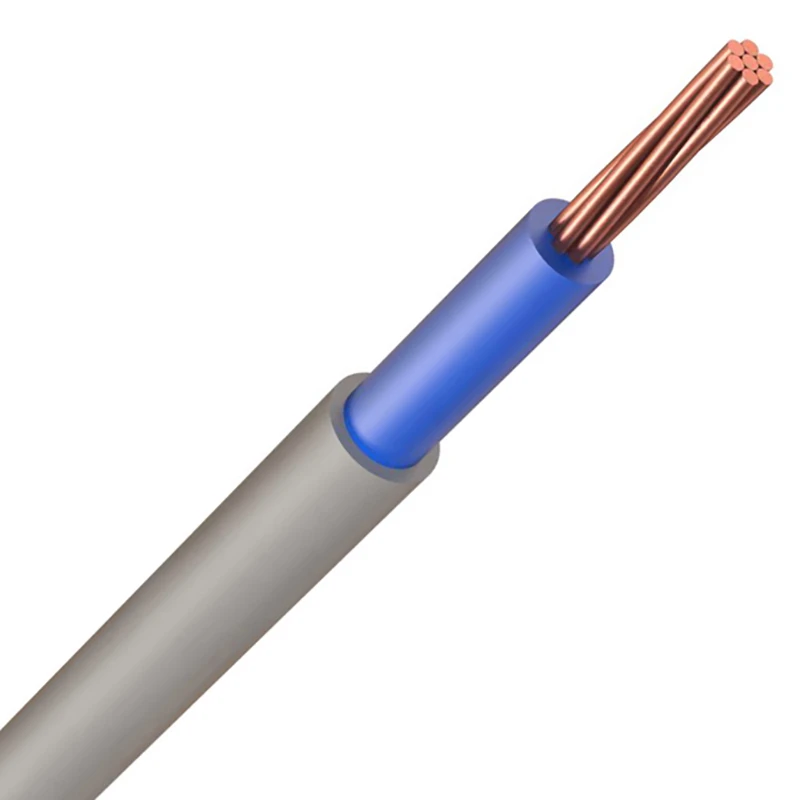

6181YH 16.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails
6181YH 16.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails
6181YH 16.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails - Image 2
6181YH 16.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails - Image 3
6181YH 16.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails - Image 4

6181YH 16.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails

£414.00 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6181Y16.0 is a Harmonised Circular Single Core Cable suitable for surface wiring installation. · · · BS6004 PVC single core cable Double Insulated · · Used in light industrial and domestic wiring · · Solid conductors 1.0mm – 2.5mm · · Stranded conductors 4.0mm -35.0mm · · Product Packaging: Reel · · Tails · · Material: PVC · · Standard: BS6004

200 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6181YH-16.0 Categories: , , Brand: Part Number: 2500142558

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Sheath colour Grey Protective barrier None Conductor category Class 2 = stranded Conductor material Copper Sheath material Polyvinyl chloride (PVC) Number of cores 1 Max. conductor temperature 70 °C Conductor Diameter 16 mm Outer diameter approx. 9 mm Core identification Colour Nominal cross sectional area of conductor 16 mm² Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Nominal voltage U0 300 V Nominal voltage U 500 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Screen No Drain wire No Oil resistant according to IEC 60811-404 No Twisted cores No · Technical Data Sheet – Click to Download
