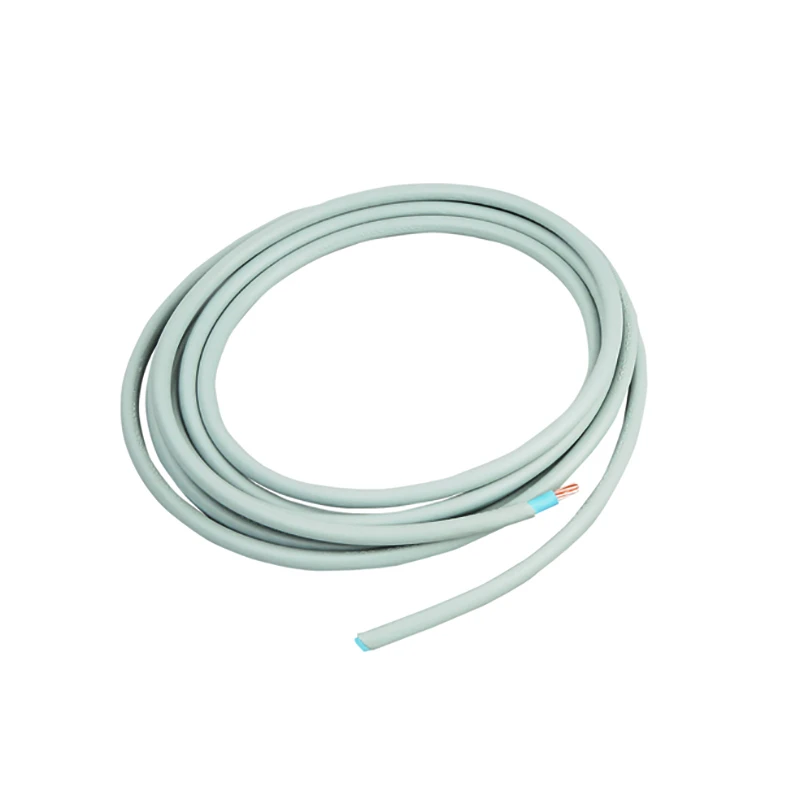

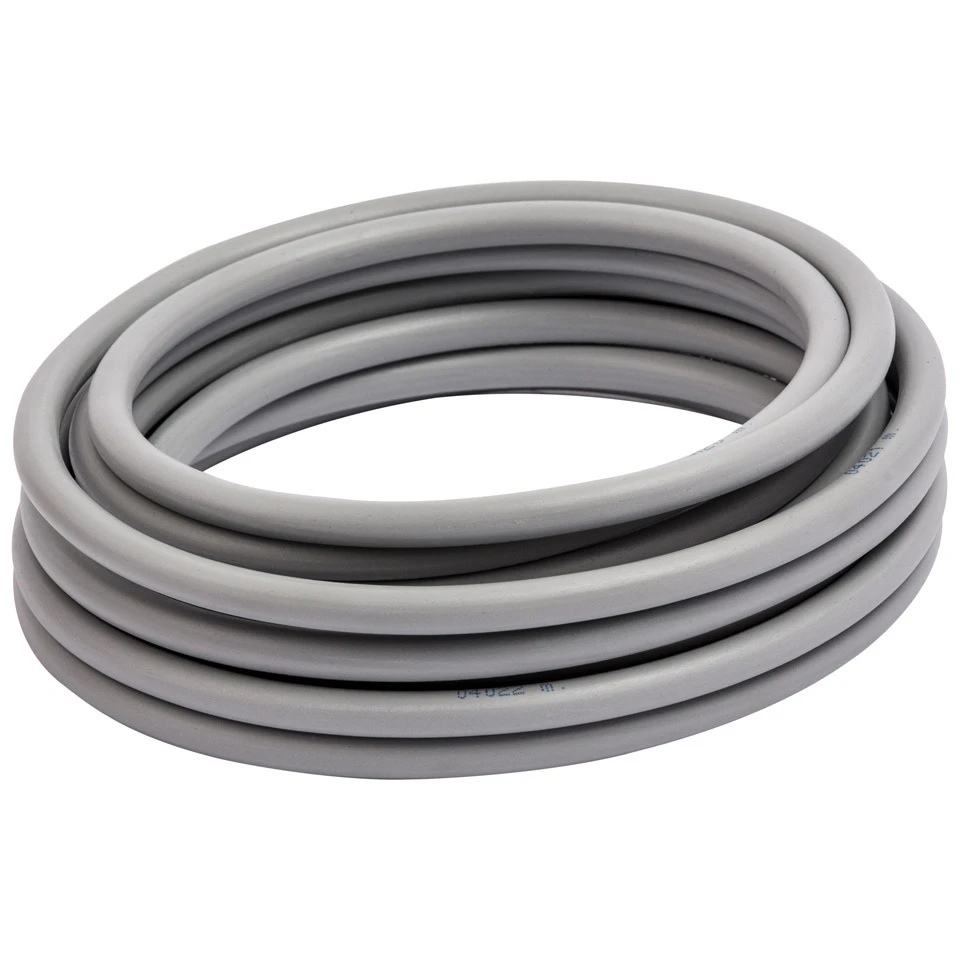

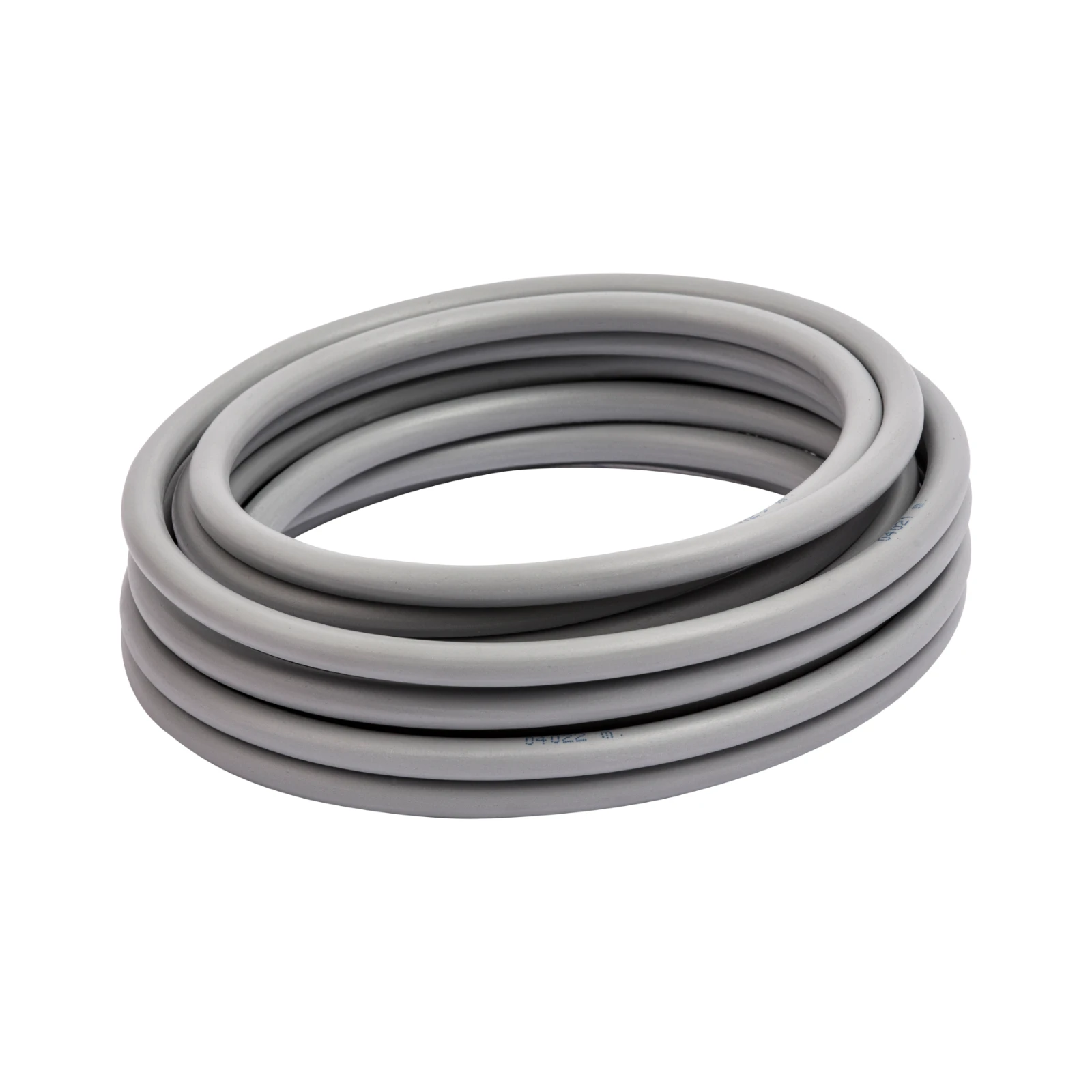

6181YH 16.0mm² Grey/Brown PVC Double Insulated Basec Cable 1-Core Tails
6181YH 16.0mm² Grey/Brown PVC Double Insulated Basec Cable 1-Core Tails
6181YH 16.0mm² Grey/Brown PVC Double Insulated Basec Cable 1-Core Tails - Image 2
6181YH 16.0mm² Grey/Brown PVC Double Insulated Basec Cable 1-Core Tails - Image 3
6181YH 16.0mm² Grey/Brown PVC Double Insulated Basec Cable 1-Core Tails - Image 4

6181YH 16.0mm² Grey/Brown PVC Double Insulated Basec Cable 1-Core Tails

£4.75 Incl. VAT

Prysmian 6181Y is a low voltage single core, PVC insulated copper conductor with an additional PVC oversheath insulation for physical protection · · · Fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · Colour: Grey/Brown · · Length in metres: 50 · · No. of cores: 1 · · Product Packaging: Reel · · Tails · · Material: PVC · · Standard: BS6004

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20146953 Categories: , , Brand: Part Number: 2500142947

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Grey Protective barrier None Conductor category Class 2 = stranded Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Number of cores 1 Outer diameter approx. 9 mm Max. conductor temperature 70 °C Nominal voltage U 500 V Nominal voltage U0 300 V Nominal cross sectional area of conductor 16 mm² Core identification Colour Conductor surface Bare Permitted cable outer temperature during assembling/handling 0 - 60 °C Drain wire No Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No · Technical Data Sheet – Click to Download
