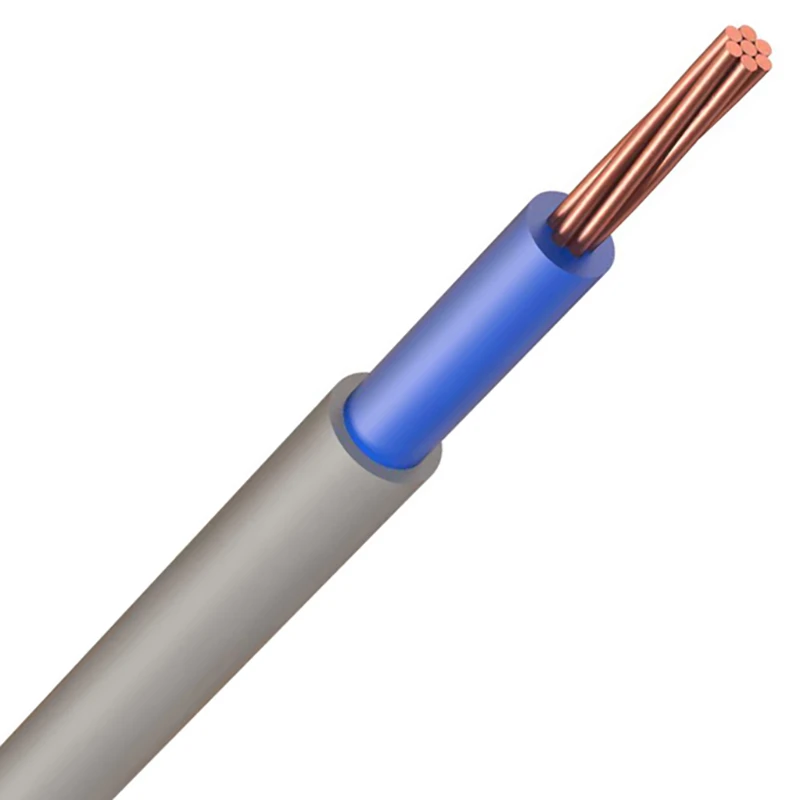

6181YH 16mm Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails 50m
6181YH 16mm Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails 50m
6181YH 16mm Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails 50m - Image 2
6181YH 16mm Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails 50m - Image 3
6181YH 16mm Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails 50m - Image 4

6181YH 16mm Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails 50m

£287.28 Incl. VAT

Prysmian 6181Y is a low voltage single core, PVC insulated copper conductor with an additional PVC oversheath insulation for physical protection. · · · Fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · Colour: Grey/Brown · · Length in metres: 50 · · No. of cores: 1

Minimum order: 50 units.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20146943 Categories: , , Brand: Part Number: 2501578991

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Conductor category Class 2 = stranded Conductor material Copper Sheath colour Grey Number of cores 1 Nominal voltage U0 300 V Nominal cross sectional area of conductor 16 mm² Core identification Colour Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Nominal voltage U 500 V Max. conductor temperature 70 °C Outer diameter approx. 9 mm Permitted cable outer temperature during assembling/handling 0 - 60 °C Drain wire No Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
