6181YH 25.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails
6181YH 25.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails
6181YH 25.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails - Image 2

6181YH 25.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails

£7.10 Incl. VAT

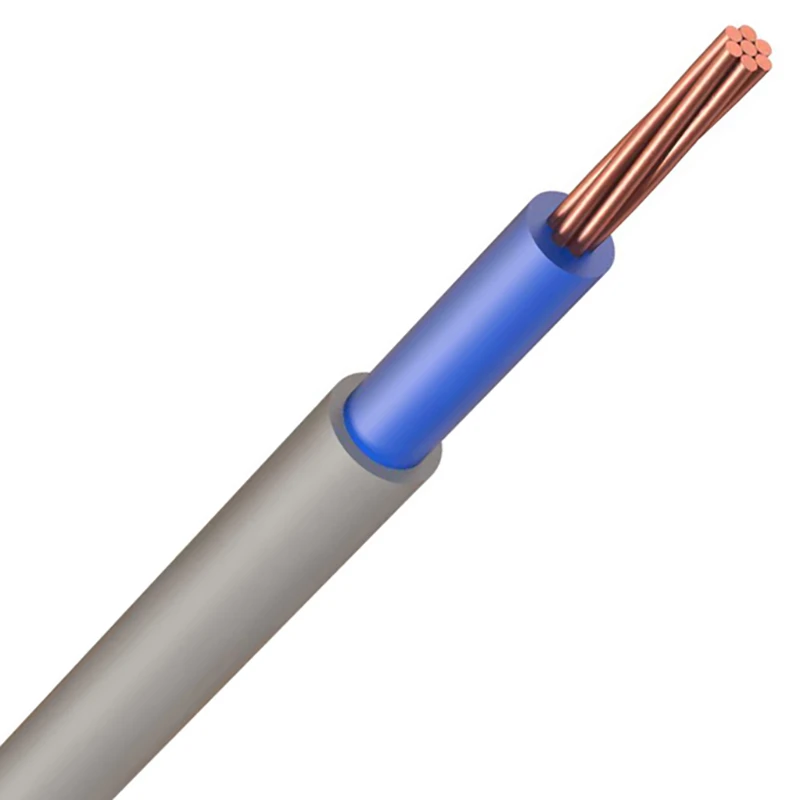

Prysmian 6181Y is a low voltage single core, PVC insulated copper conductor with an additional PVC oversheath insulation for physical protection · · · Fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · Colour: Grey/Blue · · Length in metres: 50 · · No. of cores: 1 · · Product Packaging: Reel · · Tails · · Material: PVC · · Standard: BS6004

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20146973 Categories: , , Brand: Part Number: 2500143028

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Grey Protective barrier None Conductor category Class 2 = stranded Conductor material Copper Sheath material Polyvinyl chloride (PVC) Max. conductor temperature 70 °C Number of cores 1 Outer diameter approx. 10.9 mm Nominal voltage U0 300 V Core identification Colour Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Nominal voltage U 500 V Nominal cross sectional area of conductor 25 mm² Permitted cable outer temperature during assembling/handling 0 - 60 °C Low temperature resistant according to EN 60811-504+505+506 No Screen No Oil resistant according to IEC 60811-404 No Drain wire No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
