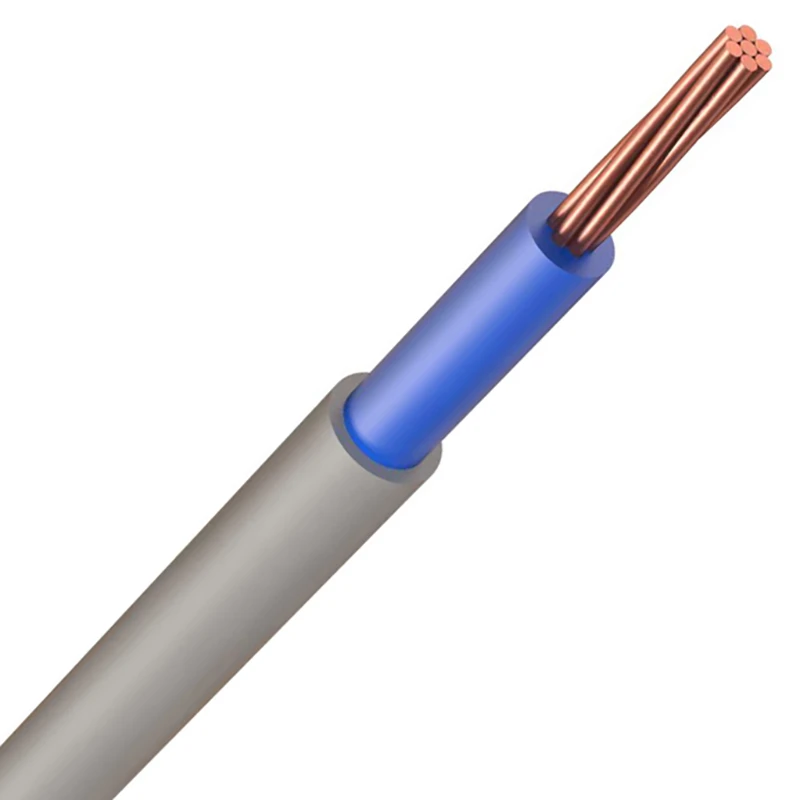

Prysmian 6181YH 25.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails
£830.76 Incl. VAT
Prysmian 6181Y is a low voltage single core, PVC insulated copper conductor with an additional PVC oversheath insulation for physical protection · · · Fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · Colour: Grey/Blue · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Tails · · Material: PVC · · Standard: BS6004
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Grey Protective barrier None Conductor category Class 2 = stranded Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Conductor surface Bare Nominal cross sectional area of conductor 25 mm² Core identification Colour Number of cores 1 Nominal voltage U0 300 V Nominal voltage U 500 V Max. conductor temperature 70 °C Outer diameter approx. 10.9 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Drain wire No Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No · Technical Data Sheet – Click to Download
