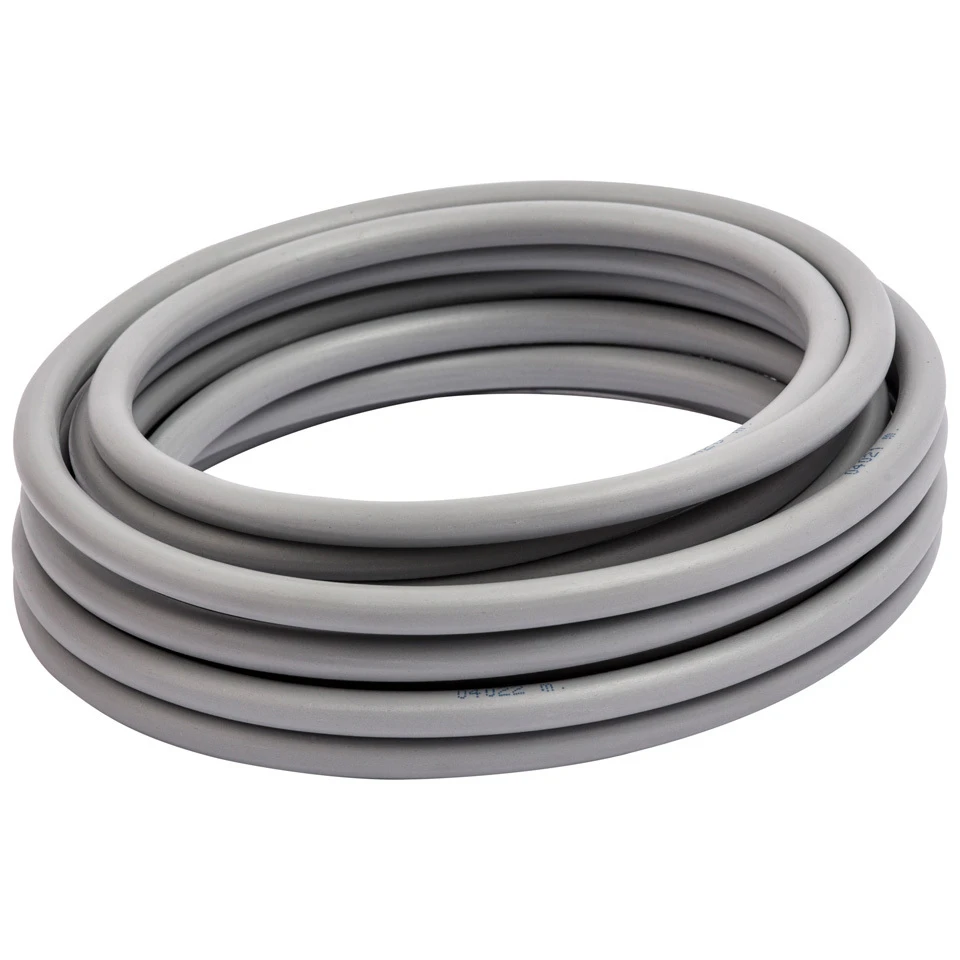

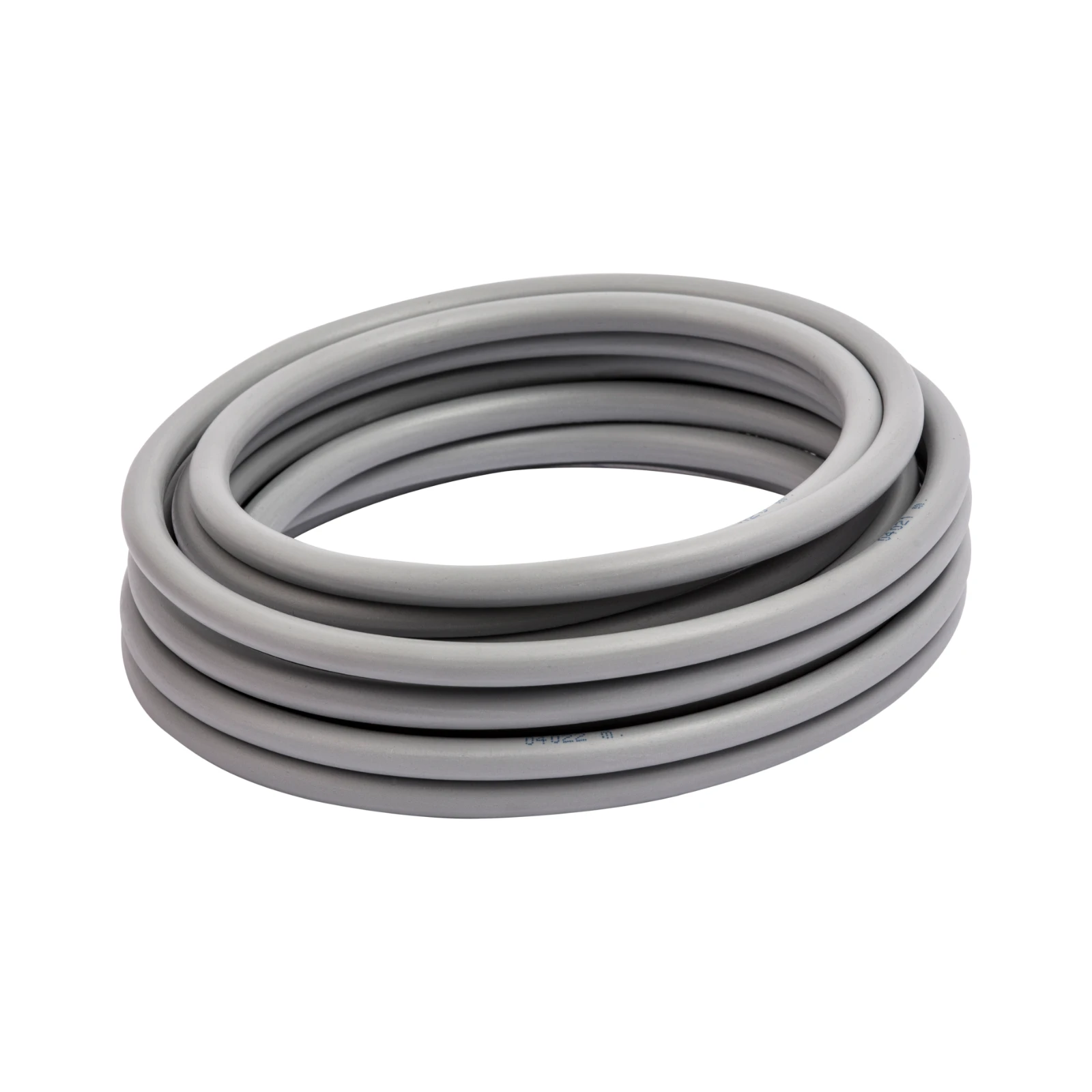

Prysmian 6181YH 25.0mm² Grey/Brown PVC Double Insulated Basec Cable 1-Core Tails
£794.64 Incl. VAT
Prysmian 6181Y is a low voltage single core, PVC insulated copper conductor with an additional PVC oversheath insulation for physical protection · · · Fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · Colour: Grey/Brown · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Tails · · Material: PVC · · Standard: BS6004
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Conductor category Class 2 = stranded Sheath colour Grey Conductor material Copper Conductor surface Bare Sheath material Polyvinyl chloride (PVC) Core identification Colour Core insulation material Polyvinyl chloride (PVC) Nominal cross sectional area of conductor 25 mm² Nominal voltage U 500 V Number of cores 1 Nominal voltage U0 300 V Max. conductor temperature 70 °C Outer diameter approx. 10.9 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Drain wire No Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No · Technical Data Sheet – Click to Download
