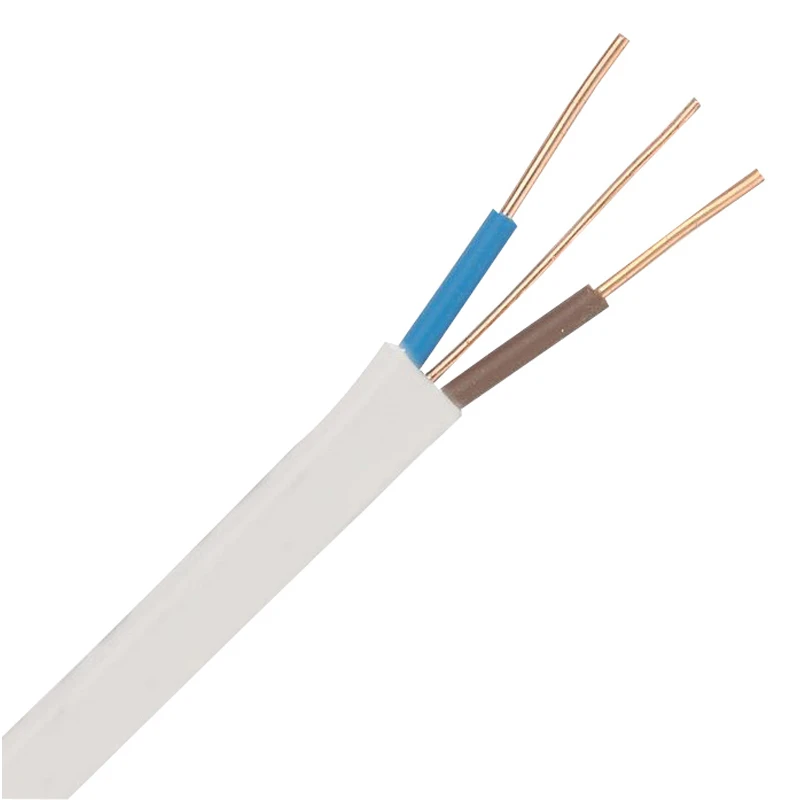

Prysmian 6242BH 1.5mm² White Basec Cable 2-Core Twin & Earth
Prysmian 6242BH 1.5mm² White Basec Cable 2-Core Twin & Earth
Prysmian 6242BH 1.5mm² White Basec Cable 2-Core Twin & Earth - Image 2
Prysmian 6242BH 1.5mm² White Basec Cable 2-Core Twin & Earth - Image 3
Prysmian 6242BH 1.5mm² White Basec Cable 2-Core Twin & Earth - Image 4

Prysmian 6242BH 1.5mm² White Basec Cable 2-Core Twin & Earth

Pack of 100

£108.24 Incl. VAT

Prysmian 6242B is a flat twin core Low Smoke, Zero Halogen (LSOH®) cable designed for installation as clipped direct, on tray or in basket and also buried within plaster or embedded in walls. Two cores with bare CPC · · · Suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · Suitable for situations in which low emission smoke and acid gas is required in case of burning. · · Length in metres: 100 · · No. of cores: 2 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS7211

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20145114 Categories: , Brand: Product Code: 2500143124

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Several Conductor category Class 1 = solid Conductor material Copper Protective barrier None Conductor surface Bare Sheath colour White Core insulation material Polyolefin Sheath material Polyolefin Nominal cross sectional area of conductor 1.5 mm² Core identification Colour Number of cores 2 Nominal voltage U 500 V Permitted cable outer temperature during assembling/handling 0 – 80 °C Conductor Diameter 1.5 mm Oil resistant according to IEC 60811-404 No Max. conductor temperature 90 °C Screen No Nominal voltage U0 300 V Drain wire Yes Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
