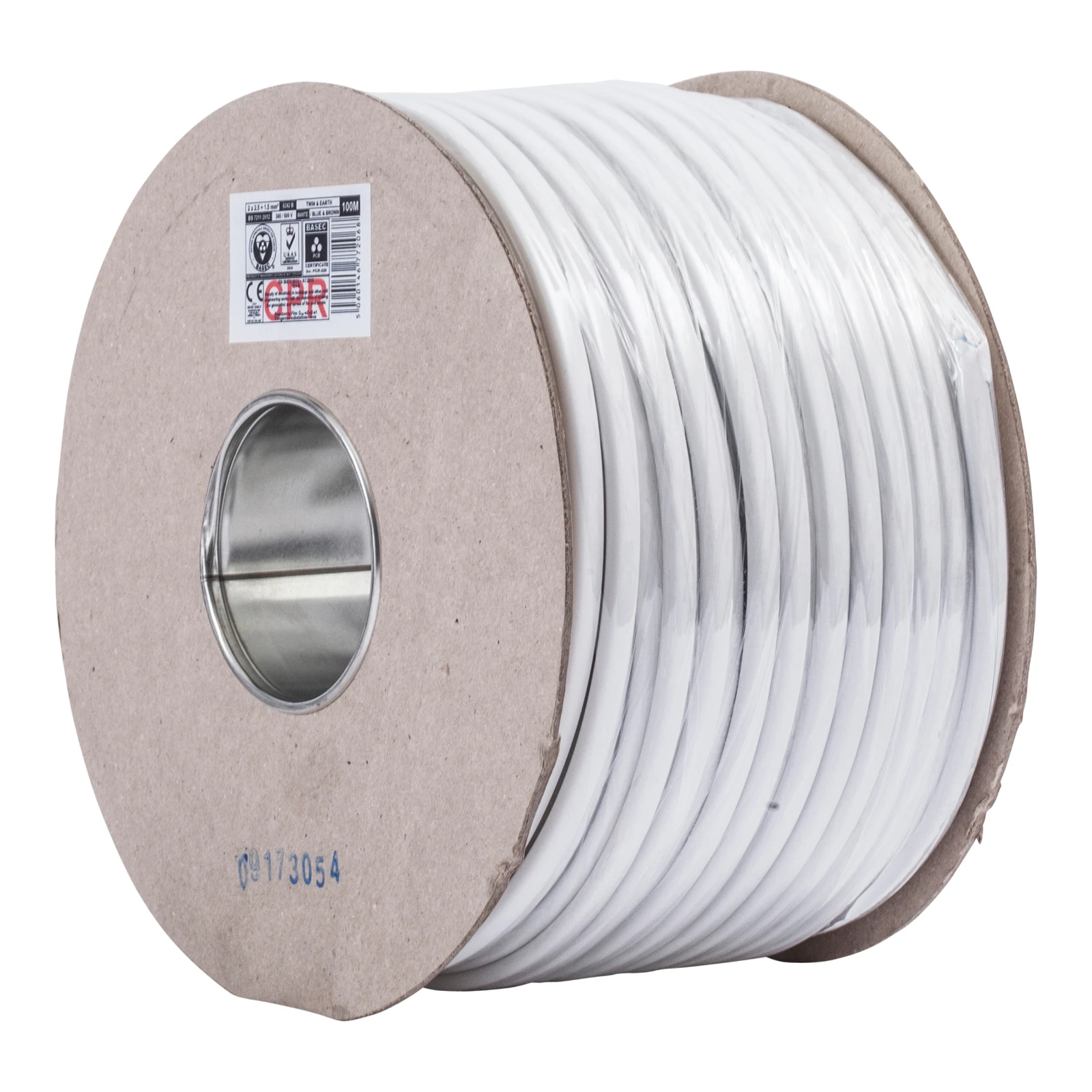

Jaylow 6242BH 1.5mm White Basec Brown/Brown Cable 2-Core Twin & Earth

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Several Protective barrier None Conductor category Class 1 = solid Conductor material Copper Sheath colour White Core insulation material Polyolefin Conductor surface Bare Sheath material Polyolefin Nominal cross sectional area of conductor 1.5 mm² Core identification Colour Nominal voltage U 500 V Conductor Diameter 1.5 mm Max. conductor temperature 90 °C Nominal voltage U0 300 V Number of cores 2 Permitted cable outer temperature during assembling/handling 0 – 80 °C Screen No Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
