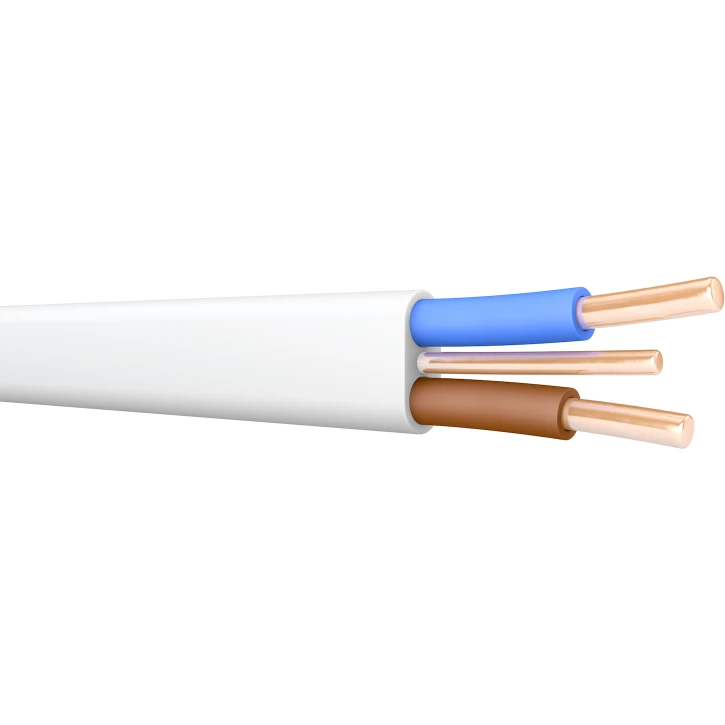

6242BH 10.0mm² White Basec Cable Twin and Earth Cable
£578.88 Incl. VAT
Prysmian 6242B is a flat twin core Low Smoke, Zero Halogen (LSOH®) cable designed for installation as clipped direct, on tray or in basket and also buried within plaster or embedded in walls. Two cores with bare CPC · · · Suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · Suitable for situations in which low emission smoke and acid gas is required in case of burning. · · Length in metres: 100 · · No. of cores: 2 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS7211
Minimum order: 100 units.
700 in stock
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Core colour Several Protective barrier None Conductor category Class 2 = stranded Conductor material Copper Sheath colour White Conductor surface Bare Nominal voltage U 500 V Max. conductor temperature 90 °C Nominal voltage U0 300 V Number of cores 2 Nominal cross sectional area of conductor 10 mm² Core insulation material Polyolefin Sheath material Polyolefin Core identification Colour Permitted cable outer temperature during assembling/handling 0 - 80 °C Oil resistant according to IEC 60811-404 No Screen No Drain wire Yes Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
