Commodity Cables
Commodity Cables 6242YH 2.5mm² PVC Twin & Earth Cable Grey Basec
Product code: 6242YH-2.5
£124.08inc VAT£103.40 ex VAT
In stock
Product image supplied by the manufacturer
Cable

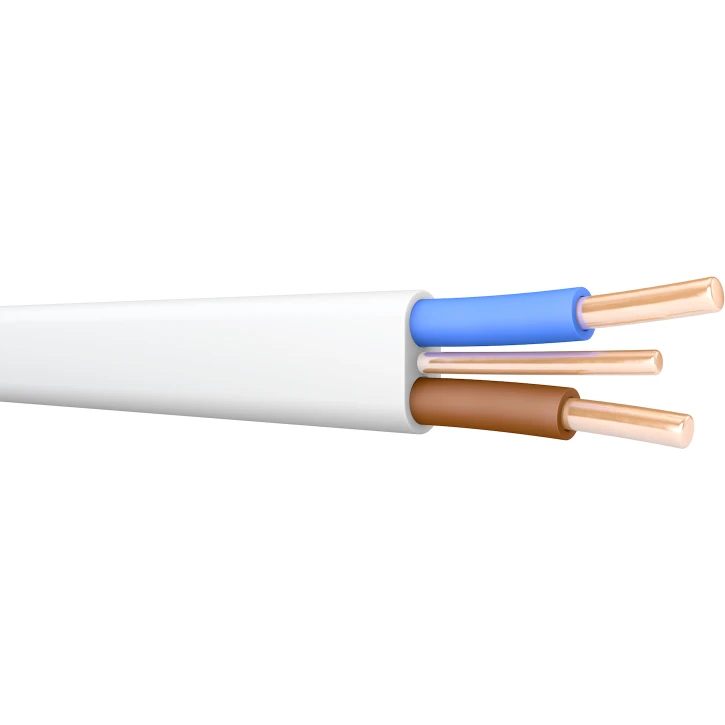

Prysmian 6242BH 16.0mm² White Basec Cable 2-Core Twin & Earth
Brand: PrysmianProduct code: 20147214Go Magpie Ref: 5060062327944
Prysmian 6242B is a flat twin core Low Smoke, Zero Halogen (LSOH®) cable designed for installation as clipped direct, on tray or in basket and also buried within plaster or embedded in walls. Two cores with bare CPC · · · Suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · Suitable for situations in which low emission smoke and acid gas is required in case of burning. · · Length in metres: 100 · · No. of cores: 2 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS7211
£9.83inc VAT£8.19 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Conductor category Class 2 = stranded Sheath colour White Conductor material Copper Conductor surface Bare Sheath material Polyolefin Core identification Colour Core insulation material Polyolefin Nominal cross sectional area of conductor 16 mm² Number of cores 2 Nominal voltage U 500 V Nominal voltage U0 300 V Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling 0 – 80 °C Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No · Technical Data Sheet – Click to Download
