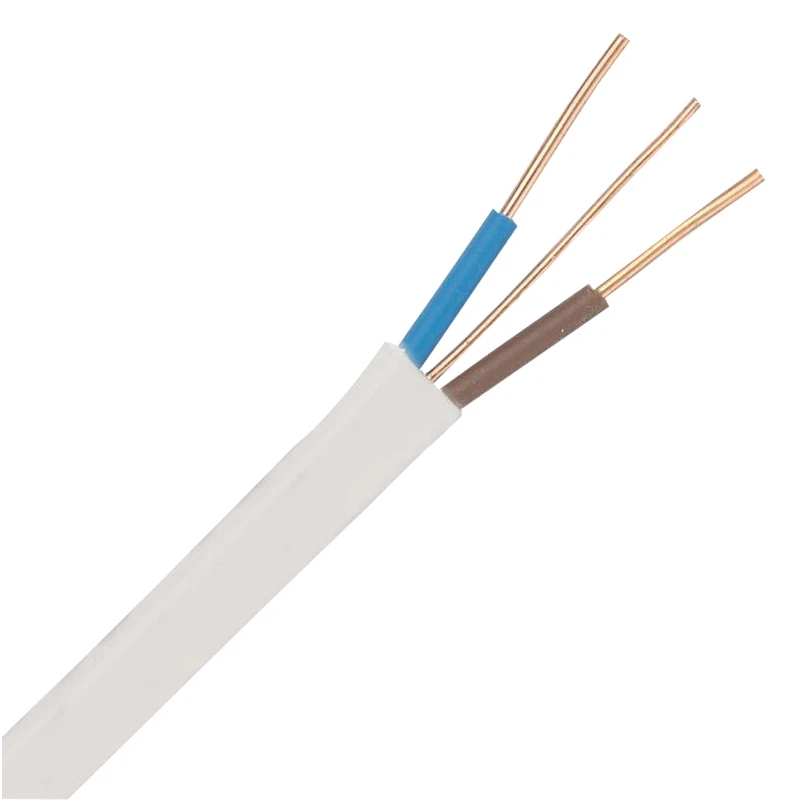

Prysmian 6242BH 2.5mm² White Basec Cable 2-Core Twin & Earth
Prysmian 6242BH 2.5mm² White Basec Cable 2-Core Twin & Earth
Prysmian 6242BH 2.5mm² White Basec Cable 2-Core Twin & Earth - Image 2
Prysmian 6242BH 2.5mm² White Basec Cable 2-Core Twin & Earth - Image 3
Prysmian 6242BH 2.5mm² White Basec Cable 2-Core Twin & Earth - Image 4

Prysmian 6242BH 2.5mm² White Basec Cable 2-Core Twin & Earth

Pack of 100

£166.32 Incl. VAT

Prysmian 6242B is a flat twin core Low Smoke, Zero Halogen (LSOH®) cable designed for installation as clipped direct, on tray or in basket and also buried within plaster or embedded in walls. Two cores with bare CPC · · · Suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · Suitable for situations in which low emission smoke and acid gas is required in case of burning. · · Length in metres: 100 · · No. of cores: 2 · · Product Packaging: Reel · · 300/500V voltage rated · · Low Smoke Zero Halogen · · Standard: BS7211

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20145123 Categories: , Brand: Product Code: 2500143126

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Conductor category Class 1 = solid Conductor material Copper Sheath colour White Conductor surface Bare Core insulation material Polyolefin Sheath material Polyolefin Nominal cross sectional area of conductor 2.5 mm² Core identification Colour Max. conductor temperature 90 °C Nominal voltage U0 300 V Nominal voltage U 500 V Number of cores 2 Conductor Diameter 2.5 mm Permitted cable outer temperature during assembling/handling 0 – 80 °C Drain wire Yes Screen No Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
