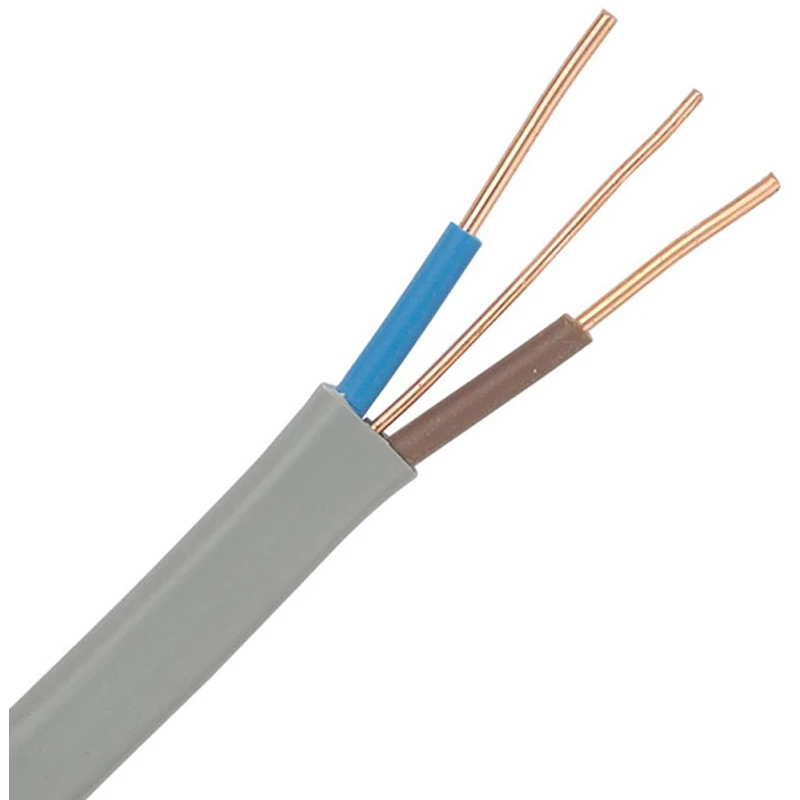

Commodity Cables 6242YH 4.0mm² Grey PVC Basec Cable 2-Core Twin & Earth
£224.40 Incl. VAT
This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. Made up of a solid plain copper wire complete with PVC insulation and sheathing; suitable for dry and humid environments, both domestic and industrial. For static applications on flat surfaces, on brickwork, under plaster, in ducts or pipes. Not suitable · · · BS6004 Grey PVC sheathed cable with CPC · · Used in light industrial & domestic wiring · · Plain annealed copper conductors · · No. of cores: 2 · · Product Packaging: Reel · · Material: PVC · · Standard: BS6004
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Sheath colour Grey Core colour Several Conductor category Class 2 = stranded Conductor material Copper Sheath material Polyvinyl chloride (PVC) Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Conductor Diameter 4 mm Core identification Colour Nominal cross sectional area of conductor 4 mm² Nominal voltage U 500 V Number of cores 2 Nominal voltage U0 300 V Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No Drain wire Yes · Technical Data Sheet – Click to Download
