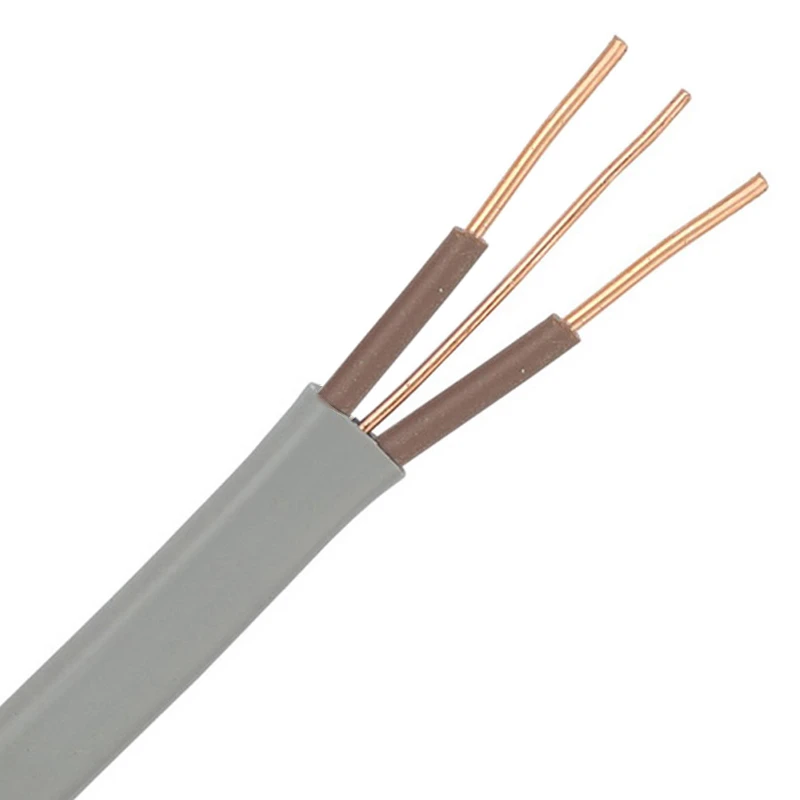

Commodity Cables 6242YH 1.0mm² Grey PVC Basec Brown/Brown Twin and Earth Cable

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 1 = solid Sheath colour Grey Core colour Several Protective barrier None Number of cores 2 Nominal voltage U0 300 V Max. conductor temperature 70 °C Conductor surface Bare Sheath material Polyvinyl chloride (PVC) Core identification Colour Core insulation material Polyvinyl chloride (PVC) Conductor material Copper Conductor Diameter 1 mm Nominal voltage U 500 V Nominal cross sectional area of conductor 1 mm² Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Screen No Oil resistant according to IEC 60811-404 No Drain wire Yes · Technical Data Sheet – Click to Download
