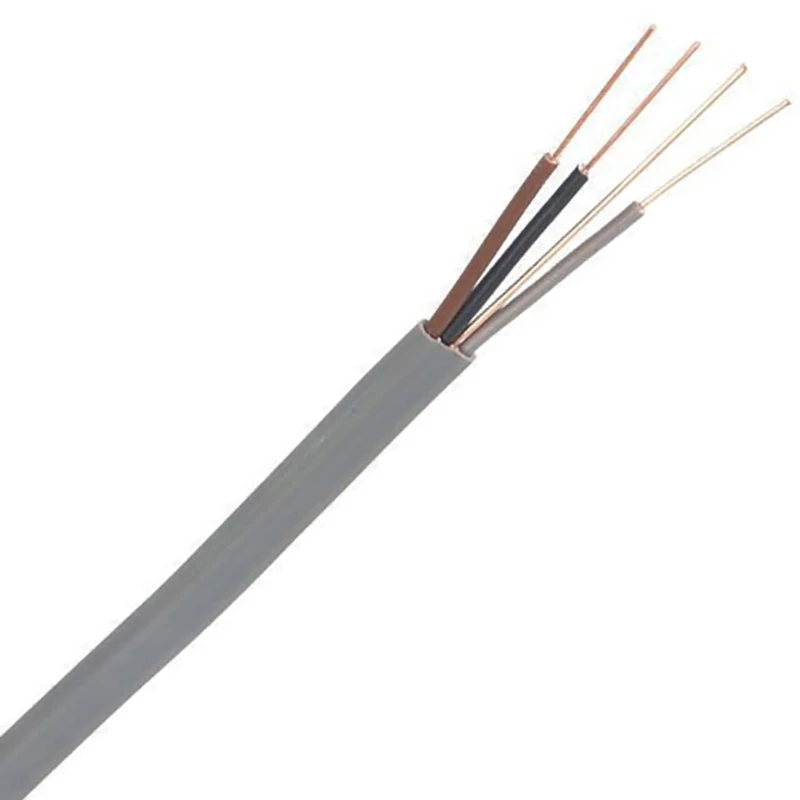

6243Y 3 Core 1mm² Copper Cable with Bare CPC 100m Grey
£102.24 Incl. VAT
This cable can be installed in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · · BASEC Approved · · Conductor Area: 1mm² · · Operating temperature: -15°C to 70°C · · Operating temperature: -15°C to 70°C
Minimum order: 100 units.
9100 in stock
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Conductor category Class 1 = solid Sheath colour Grey Conductor Diameter 1 mm Nominal cross sectional area of conductor 1 mm² Conductor surface Bare Core identification Colour Sheath material Polyvinyl chloride (PVC) Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Core colour Several Number of cores 3 Nominal voltage U0 300 V Nominal voltage U 500 V Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 - 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No Drain wire Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
