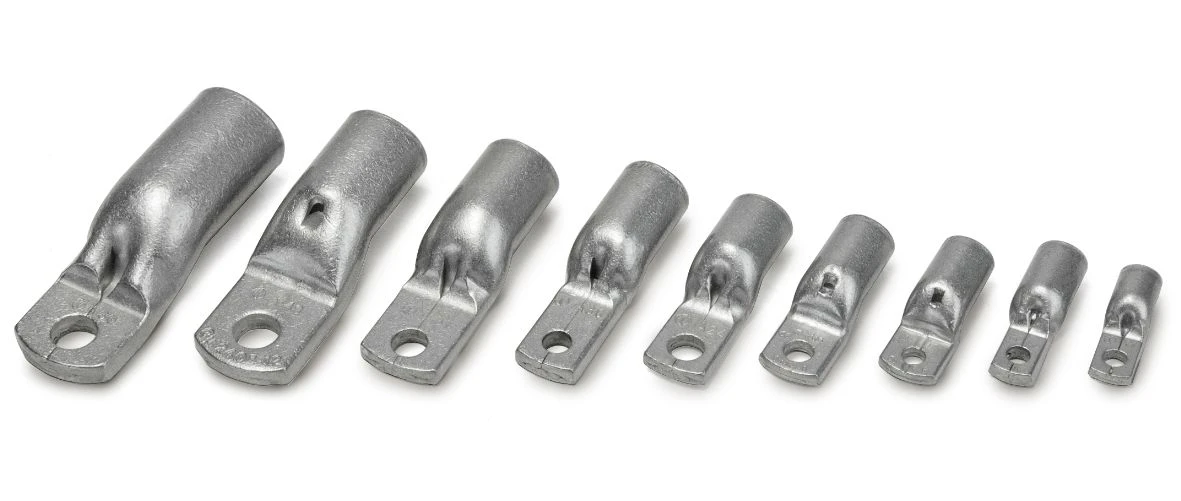

630mm² Copper Lug M16 stud [Pack of 1]
630mm² Copper Lug M16 stud [Pack of 1]
630mm² Copper Lug M16 stud [Pack of 1] - Image 2
630mm² Copper Lug M16 stud [Pack of 1] - Image 3
630mm² Copper Lug M16 stud [Pack of 1] - Image 4

630mm² Copper Lug M16 stud [Pack of 1]

£41.00 Incl. VAT

630mm² Copper tube crimping lug M16 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

26 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A120-M16 Categories: , , Brand: Part Number: 2500025545

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) Conductor category Class 5 = flexible Surface protection Tinned Flange shape Ring shape Number of fixing holes 1 Nominal cross section 600 mm² Bolt dimension (metric) 16 With sight-hole Yes Slender flange model No Insulated No
