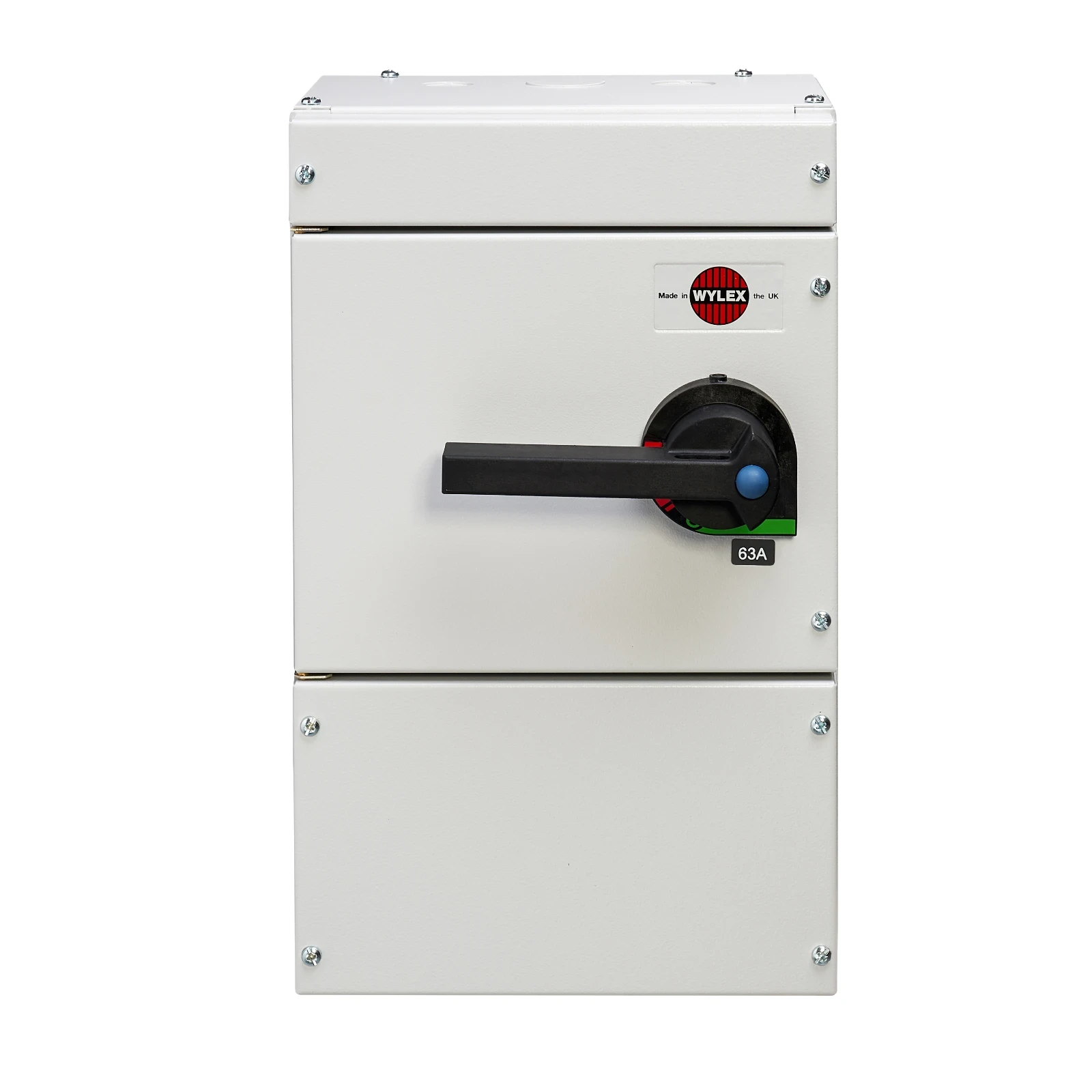

Wylex 63A 3P+N Fuse Combination Unit c/w Fuses
£316.87 Incl. VAT
Robust steel enclosures with cable glanding plate supplied top and bottom removable door opens through 180 for ease of access. · · · Supplied with 63A fuses. · · Painted RAL 7035 steel enclosure 425mmH x 263mmW x 188mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 70mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (NHCSB2) is required. · · Spreading room is allowed for at one end only · · To fit a 4 core cable at both ends an additional cable spreader (NHCSB2) is required
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Fuse switch disconnector Number of poles 3 Rated permanent current Iu 63 A Conditioned rated short-circuit current Iq 50 kA Rated short-time withstand current lcw 1.5 kA Max. rated operation voltage Ue AC 415 V Rated operation power at AC-23, 400 V 18.5 kW Suitable for busbar mounting No With error protection No Version as main switch Yes Version as safety switch No Version as emergency stop installation No Motor drive integrated No Equipped with connectors Yes Motor drive optional No · Technical Data Sheet – Click to Download
