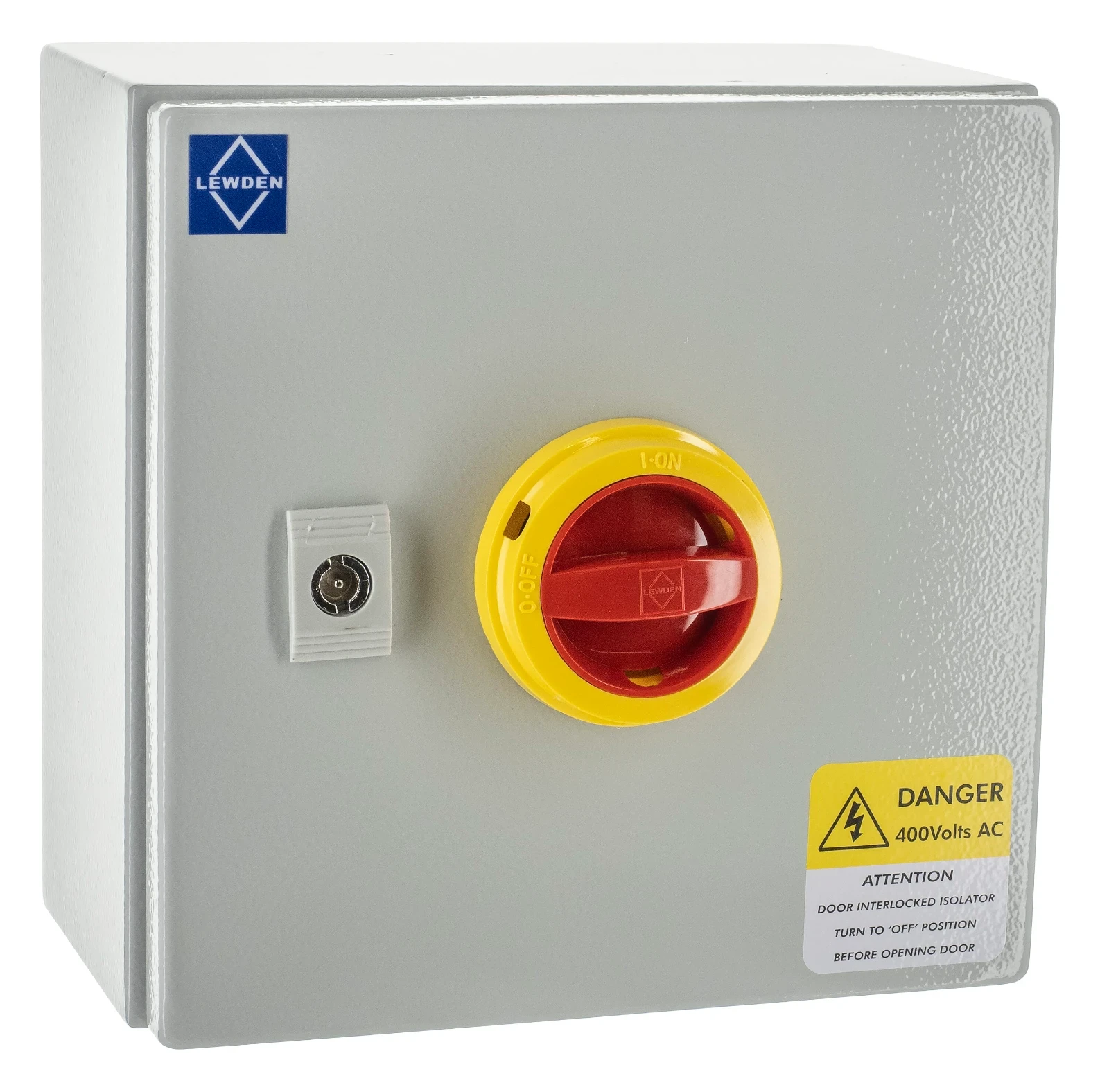

Lewden 250x250x200mm 63A Steel IP65 Metal Clad Switch Disconnector
Lewden 250x250x200mm 63A Steel IP65 Metal Clad Switch Disconnector

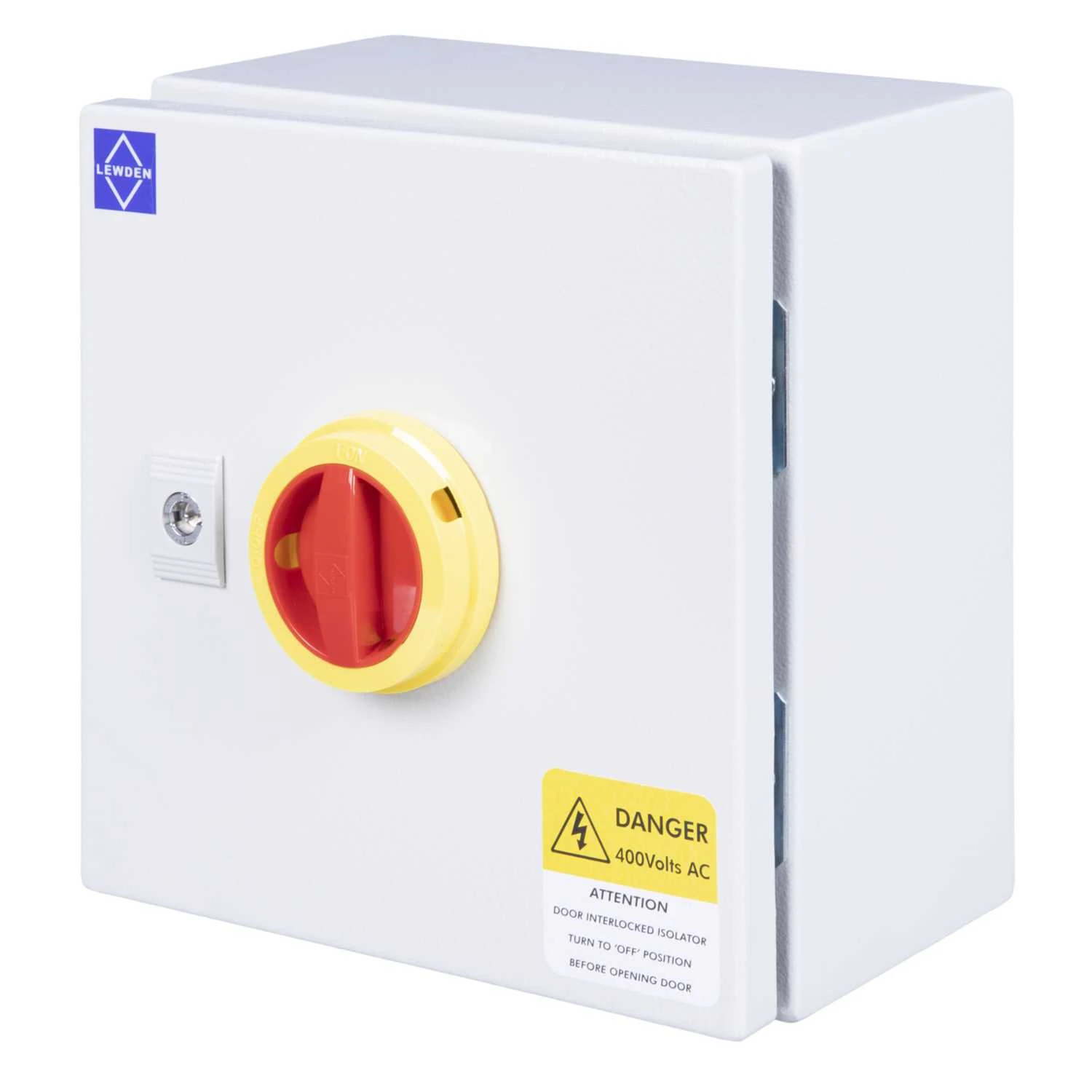

Lewden 250x250x200mm 63A Steel IP65 Metal Clad Switch Disconnector - Image 2

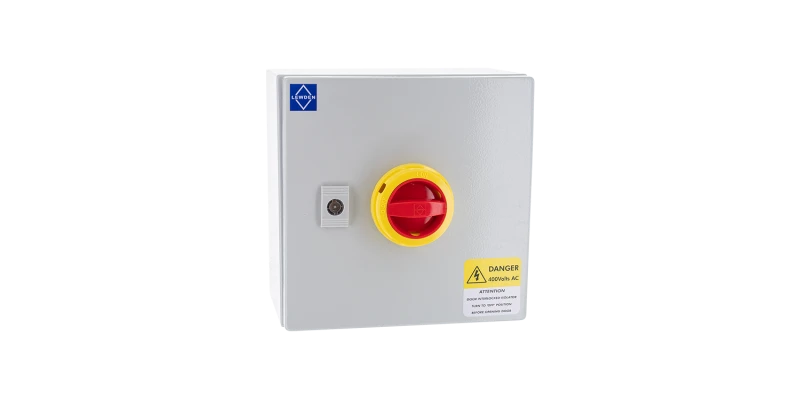

Lewden 250x250x200mm 63A Steel IP65 Metal Clad Switch Disconnector - Image 3
Lewden 250x250x200mm 63A Steel IP65 Metal Clad Switch Disconnector - Image 4

Lewden 250x250x200mm 63A Steel IP65 Metal Clad Switch Disconnector

£214.54 Incl. VAT

The 250x250x200mm 63A Steel IP65 Metal Clad Switch Disconnector Lewden is a robust and compact enclosure that is fully rated to AC-23A category. This allows for safe operation even with highly inductive loads, such as motors. The enclosure is also padlockable and interlocked, providing an added level of safety. The powder coated mild steel construction ensures durability and a long service life. The compact size of the enclosure makes it ideal for use in tight spaces. · · · Robust and wide IP65 Enclosures · · Fully rated to AC-23A category – allows safe operation even with highly inductive loads (e.g. Motors, etc.) · · Pad lockable and interlocked door · · Powder coated mild steel enclosures with a wide space for comfortable wiring

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: IS634P Categories: , , , Brand: Product Code: 2501348142

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally closed contact – Rated permanent current Iu – A Number of auxiliary contacts as normally open contact – Rated operation power at AC-3, 400 V – kW Rated operation power at AC-23, 400 V – kW Rated permanent current at AC-21, 400 V – A Max. rated operation voltage Ue AC – V Rated permanent current at AC-23, 400 V – A Switching power at 400 V – kW Rated short-time withstand current lcw – kA Number of poles 4 Number of switches 1 Conditioned rated short-circuit current Iq – kA Number of auxiliary contacts as change-over contact – Rated operating voltage 400 – 400 V Version as emergency stop installation No Interlockable Yes Version as main switch No Version as safety switch No Version as maintenance-/service switch No Version as reversing switch No Motor drive optional No Voltage release optional No Motor drive integrated No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for distribution board installation No Suitable for intermediate mounting No · Technical Data Sheet – Click to Download
