6491B 1.5mm² Brown Basec Cable 1-Core
6491B 1.5mm² Brown Basec Cable 1-Core
6491B 1.5mm² Brown Basec Cable 1-Core - Image 2
6491B 1.5mm² Brown Basec Cable 1-Core - Image 3
6491B 1.5mm² Brown Basec Cable 1-Core - Image 4

6491B 1.5mm² Brown Basec Cable 1-Core

£43.20 Incl. VAT

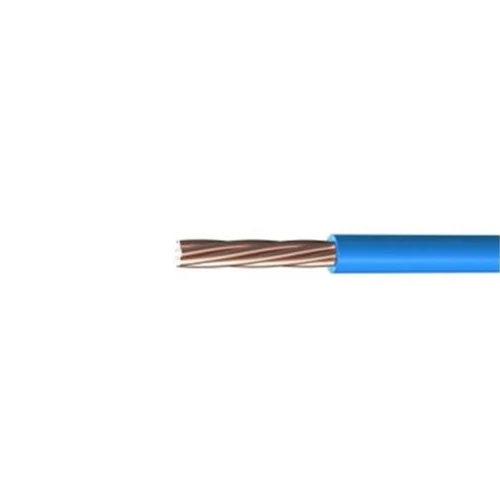

Prysmian 6491B is a single core, low voltage Low Smoke, Zero Halogen (LSOH®) wiring cable designed for installation within conduit, trunking or inside fixed protected environments · · · Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation. · · Particularly used in situations where low emissions of smoke and acid gas is required in case of burning. · · Green/Yellow for use as earth can be installed without mechanical protection. · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41

Minimum order: 100 units.

1600 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20147310 Categories: , , Brand: Part Number: 2500143767

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Core colour Brown Armouring/reinforcement None Sheath colour Brown Conductor material Copper Conductor surface Bare Core identification Colour Nominal voltage U 750 V Number of cores 1 Twisted cores No Permitted cable outer temperature during assembling/handling 0 - 80 °C Outer diameter approx. 3 mm Nominal voltage U0 450 V Max. conductor temperature 90 °C Conductor Diameter 1.5 mm Nominal cross sectional area of conductor 1.5 mm² Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
