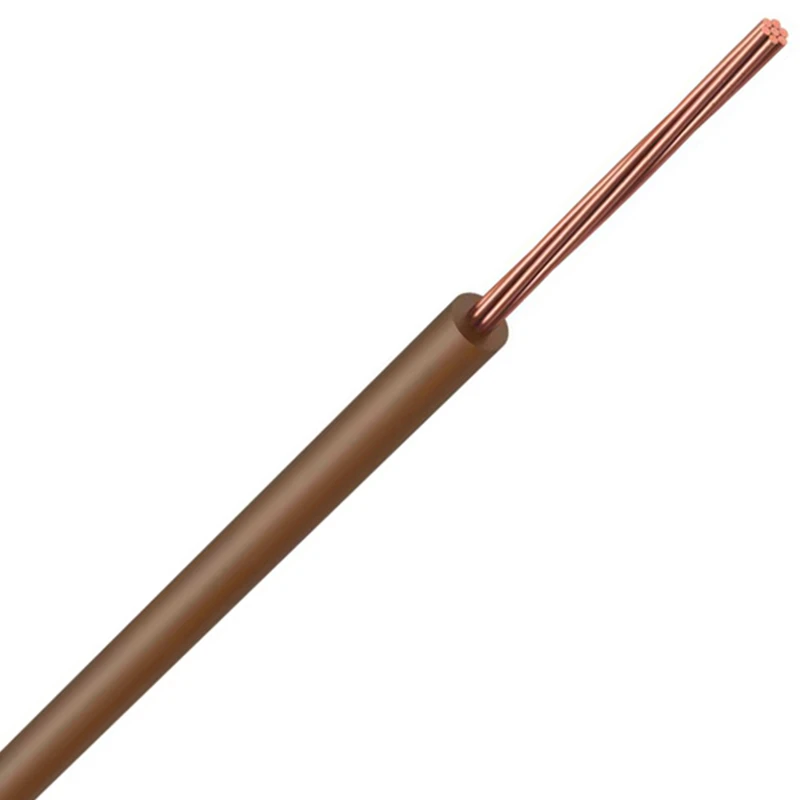

6491B 1.5mm² Brown Basec Cable 1-Core
6491B 1.5mm² Brown Basec Cable 1-Core
6491B 1.5mm² Brown Basec Cable 1-Core - Image 2
6491B 1.5mm² Brown Basec Cable 1-Core - Image 3
6491B 1.5mm² Brown Basec Cable 1-Core - Image 4

6491B 1.5mm² Brown Basec Cable 1-Core

£158.70 Incl. VAT

This product is packaged as 500m Reel. Hence when ordering, a mutiple of 500 needs to be entered. 6491B1.5 is a General Purpose Single Core Cable for use in conduit and trunking. 6491B Cable also known as HO7Z-R is a plain annealed copper stranded circular conductor. Produces low levels of smoke and fumes under fire conditions.. Operating voltage of 450/750V · · · Cable Size: 1.5mm² · · Colour: Brown · · Length in metres: 500 · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491B-1.5-BRN500 CABLE-RX Categories: , , Brand: Part Number: 2500507517

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Brown Armouring/reinforcement None Conductor category Class 2 = stranded Core colour Blue Conductor material Copper Conductor surface Bare Number of cores 1 Outer diameter approx. 3 mm Max. conductor temperature 90 °C Nominal voltage U0 450 V Conductor Diameter 1.5 mm Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U 750 V Core identification Colour Permitted cable outer temperature during assembling/handling 0 – 80 °C Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
