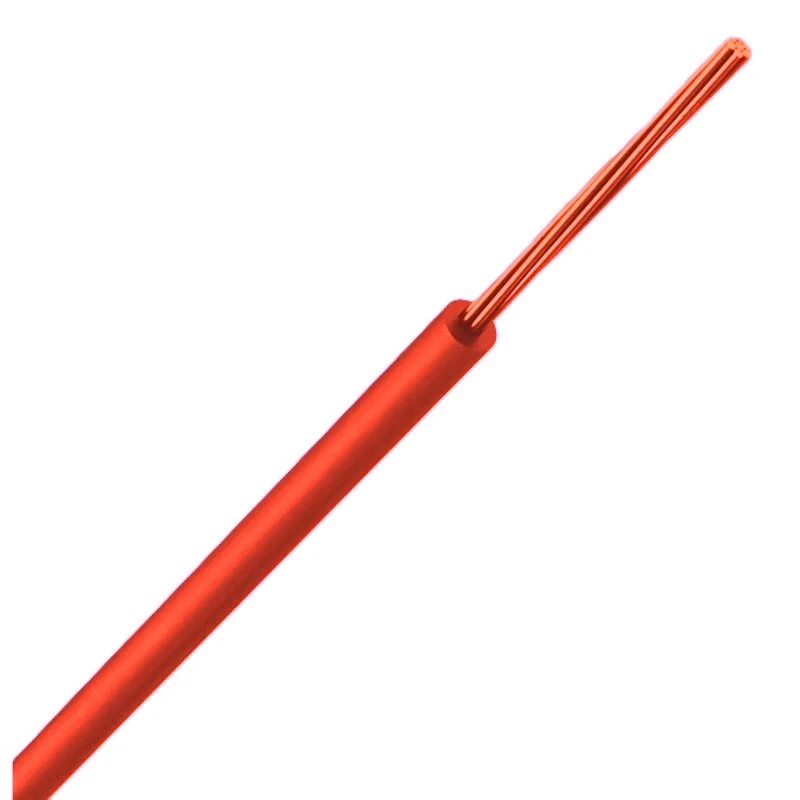

Commodity Cables 6491B 1.5mm² Red Basec Cable Single 1-Core
£42.24 Incl. VAT
This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. Single core OHLS® wiring cable designed for installation within conduit, trunking or inside fixed protected environments, such as appliances, switchgear and control gear or without mechanical protection for green/yellow earth cable. The cable is ideal as part of the wiring for non-emergency systems in public buildings where reduction in the volume of smoke and acid gas emissions is beneficial. · · · Cable Size: 1.5mm² · · Colour: Red · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Cut to Various Lengths: No · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41 · · Standard: BS EN 50525-3-41
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Conductor material Copper Core colour Blue Conductor surface Bare Sheath colour Brown Max. conductor temperature 90 °C Core identification Colour Number of cores 1 Outer diameter approx. 3 mm Conductor Diameter 1.5 mm Nominal voltage U0 450 V Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U 750 V Permitted cable outer temperature during assembling/handling 0 – 80 °C Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
