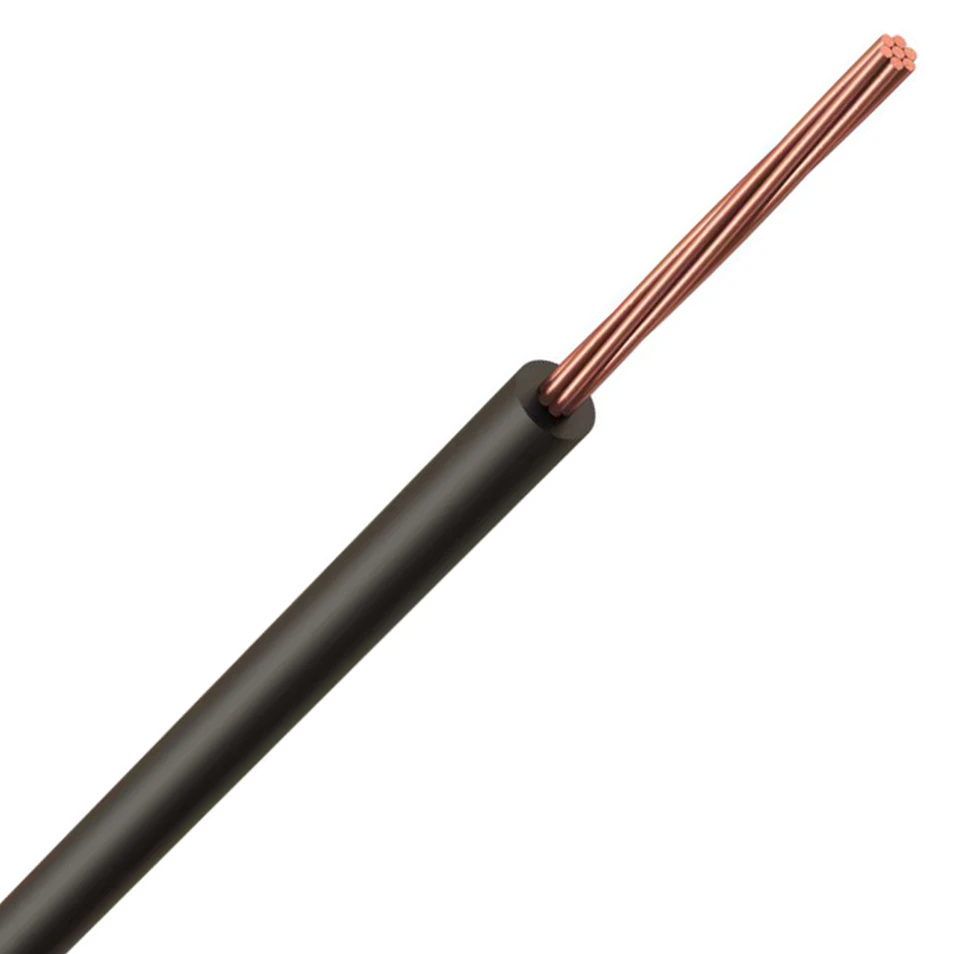

6491B 16.0mm² Black Basec Cable 1-Core
6491B 16.0mm² Black Basec Cable 1-Core
6491B 16.0mm² Black Basec Cable 1-Core - Image 2
6491B 16.0mm² Black Basec Cable 1-Core - Image 3
6491B 16.0mm² Black Basec Cable 1-Core - Image 4

6491B 16.0mm² Black Basec Cable 1-Core

£306.72 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491B16.0 (also known as HO7Z-R) is a general purpose single core cable made up of a plain annealed copper stranded circular conductor complete with low smoke and zero halogen (LSZH) sheathing for use in conduit and trunking. . Ideal in applications where fire, smoke, emissions and toxic fumes would create a potential threat · · · Cable Size: 16.0mm² · · Colour: Black · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41

Minimum order: 100 units.

1100 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491B-16.0-BLK100 CABL-RX Categories: , , , Brand: Part Number: 2500061249

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Armouring/reinforcement None Sheath colour Blue Core colour Blue Conductor material Copper Core identification Colour Nominal voltage U 750 V Conductor surface Bare Number of cores 1 Twisted cores No Permitted cable outer temperature during assembling/handling 0 - 80 °C Outer diameter approx. 6.9 mm Max. conductor temperature 90 °C Nominal voltage U0 450 V Conductor Diameter 16 mm Nominal cross sectional area of conductor 16 mm² Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
