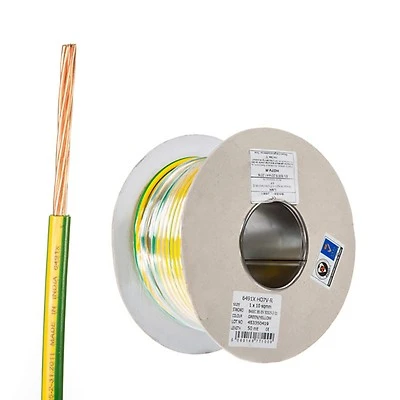

6491B 16.0mm² Green/Yellow Basec Cable 1-Core
6491B 16.0mm² Green/Yellow Basec Cable 1-Core
6491B 16.0mm² Green/Yellow Basec Cable 1-Core - Image 2

6491B 16.0mm² Green/Yellow Basec Cable 1-Core

£148.34 Incl. VAT

This product is packaged as 50m Reel. Hence when ordering, a mutiple of 50 needs to be entered. · · · Cable Size: 16.0mm² · · Colour: Green/Yellow · · Length in metres: 50 · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41

1191 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491B-16.0-G/Y50 CABLE-RX Categories: , , Brand: Part Number: 2500598333

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Conductor material Copper Armouring/reinforcement None Core colour Blue Sheath colour Blue Conductor surface Bare Core identification Colour Nominal voltage U 750 V Number of cores 1 Twisted cores No Permitted cable outer temperature during assembling/handling 0 – 80 °C Outer diameter approx. 6.9 mm Max. conductor temperature 90 °C Nominal voltage U0 450 V Conductor Diameter 16 mm Nominal cross sectional area of conductor 16 mm² Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
