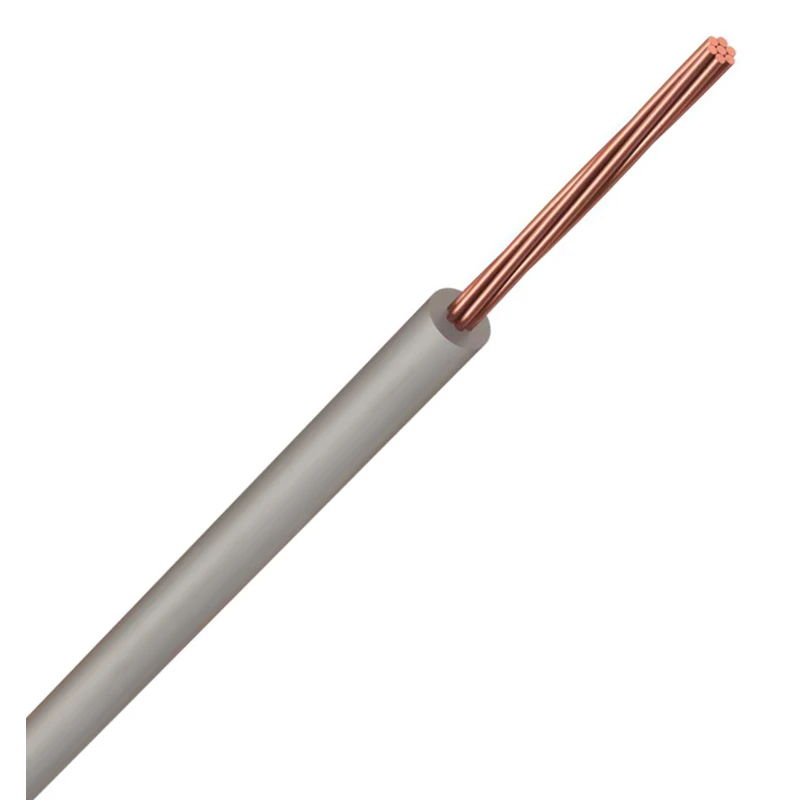

Commodity Cables 6491B 16.0mm² Grey Basec Cable Single 1-Core
Commodity Cables 6491B 16.0mm² Grey Basec Cable Single 1-Core
Commodity Cables 6491B 16.0mm² Grey Basec Cable Single 1-Core - Image 2
Commodity Cables 6491B 16.0mm² Grey Basec Cable Single 1-Core - Image 3
Commodity Cables 6491B 16.0mm² Grey Basec Cable Single 1-Core - Image 4

Commodity Cables 6491B 16.0mm² Grey Basec Cable Single 1-Core

Pack of 100

£355.08 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491B16.0 (also known as HO7Z-R) is a general purpose single core cable made up of a plain annealed copper stranded circular conductor complete with low smoke and zero halogen (LSZH) sheathing for use in conduit and trunking. · · · Cable Size: 16.0mm² · · Colour: Grey · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491B-16.0-GRY100 CABL-RX Categories: , Brand: Product Code: 2500142507

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Core colour Blue Sheath colour Blue Conductor surface Bare Conductor material Copper Max. conductor temperature 90 °C Core identification Colour Nominal voltage U0 450 V Outer diameter approx. 6.9 mm Conductor Diameter 16 mm Number of cores 1 Nominal voltage U 750 V Nominal cross sectional area of conductor 16 mm² Permitted cable outer temperature during assembling/handling 0 – 80 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Twisted cores No · Technical Data Sheet – Click to Download
