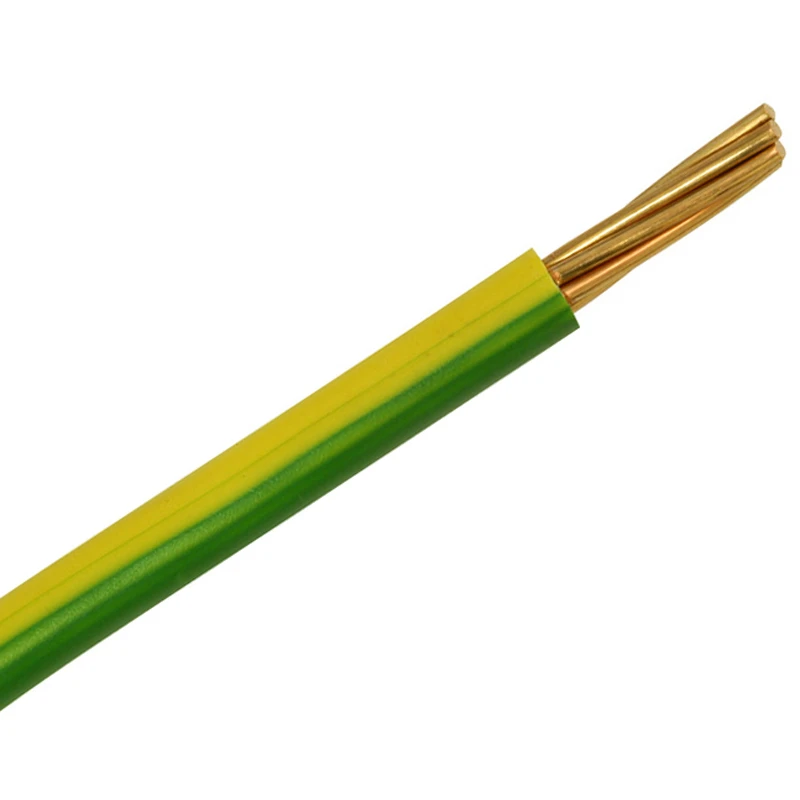

Commodity Cables 6491B 2.5mm² Green/Yellow Basec Cable Single 1-Core
Commodity Cables 6491B 2.5mm² Green/Yellow Basec Cable Single 1-Core
Commodity Cables 6491B 2.5mm² Green/Yellow Basec Cable Single 1-Core - Image 2
Commodity Cables 6491B 2.5mm² Green/Yellow Basec Cable Single 1-Core - Image 3
Commodity Cables 6491B 2.5mm² Green/Yellow Basec Cable Single 1-Core - Image 4

Commodity Cables 6491B 2.5mm² Green/Yellow Basec Cable Single 1-Core

Pack of 500

£296.70 Incl. VAT

This product is packaged as 500m Reel. Hence when ordering, a mutiple of 500 needs to be entered. 6491B2.5 (also known as HO7Z-R) is a general purpose single core cable made up of a plain annealed copper stranded circular conductor complete with low smoke and zero halogen (LSZH) sheathing for use in conduit and trunking. . Ideal in applications where fire, smoke, emissions and toxic fumes would create a potential threat · · · Cable Size: 2.5mm² · · Colour: Green/Yellow · · Length in metres: 500 · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491B-2.5-G/Y500 CABLE-RX Categories: , , , Brand: Product Code: 2500443663

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Sheath colour Blue Core colour Blue Core identification Colour Conductor material Copper Outer diameter approx. 3.7 mm Max. conductor temperature 90 °C Number of cores 1 Nominal voltage U0 450 V Nominal voltage U 750 V Conductor Diameter 2.5 mm Permitted cable outer temperature during assembling/handling 0 – 80 °C Nominal cross sectional area of conductor 2.5 mm² Low temperature resistant according to EN 60811-504+505+506 No Twisted cores No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
