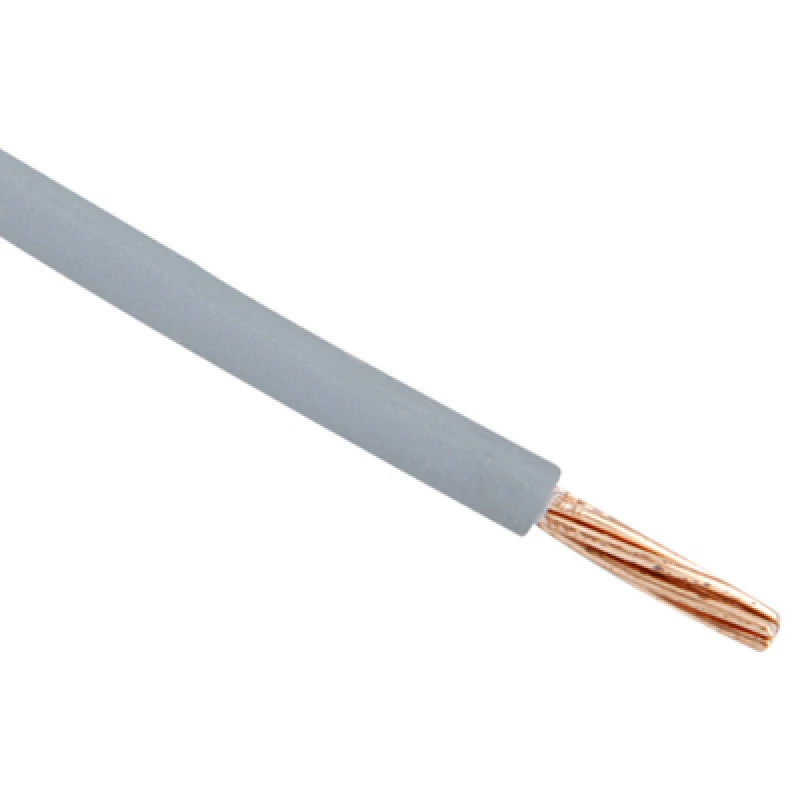

6491B 2.5mm² Grey Basec Cable 1-Core
6491B 2.5mm² Grey Basec Cable 1-Core
6491B 2.5mm² Grey Basec Cable 1-Core - Image 2

6491B 2.5mm² Grey Basec Cable 1-Core

£248.40 Incl. VAT

This product is packaged as 500m Reel. Hence when ordering, a mutiple of 500 needs to be entered. · · · Cable Size: 2.5mm² · · Colour: Grey · · Length in metres: 500 · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491B-2.5-GRY500 CABLE-RX Categories: , , Brand: Part Number: 1050372008

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Armouring/reinforcement None Core colour Blue Sheath colour Blue Conductor material Copper Core identification Colour Outer diameter approx. 3.7 mm Permitted cable outer temperature during assembling/handling 0 – 80 °C Nominal voltage U0 450 V Number of cores 1 Nominal voltage U 750 V Conductor Diameter 2.5 mm Max. conductor temperature 90 °C Nominal cross sectional area of conductor 2.5 mm² Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Twisted cores No · Technical Data Sheet – Click to Download
