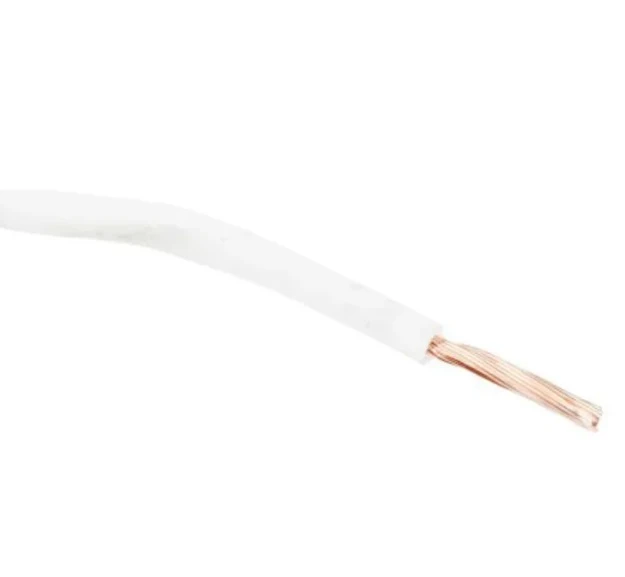

6491B 4.0mm² White Basec Cable 1-Core
6491B 4.0mm² White Basec Cable 1-Core
6491B 4.0mm² White Basec Cable 1-Core - Image 2

6491B 4.0mm² White Basec Cable 1-Core

£73.14 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. · · · Cable Size: 4.0mm² · · Colour: White · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Lead free · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491B-4.0 Categories: , , Brand: Part Number: 1050371191

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Sheath colour Brown Core colour Blue Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Core identification Colour Conductor surface Bare Max. conductor temperature 90 °C Nominal voltage U0 450 V Outer diameter approx. 4.2 mm Number of cores 1 Nominal voltage U 750 V Nominal cross sectional area of conductor 4 mm² Permitted cable outer temperature during assembling/handling 0 – 80 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
