Cable

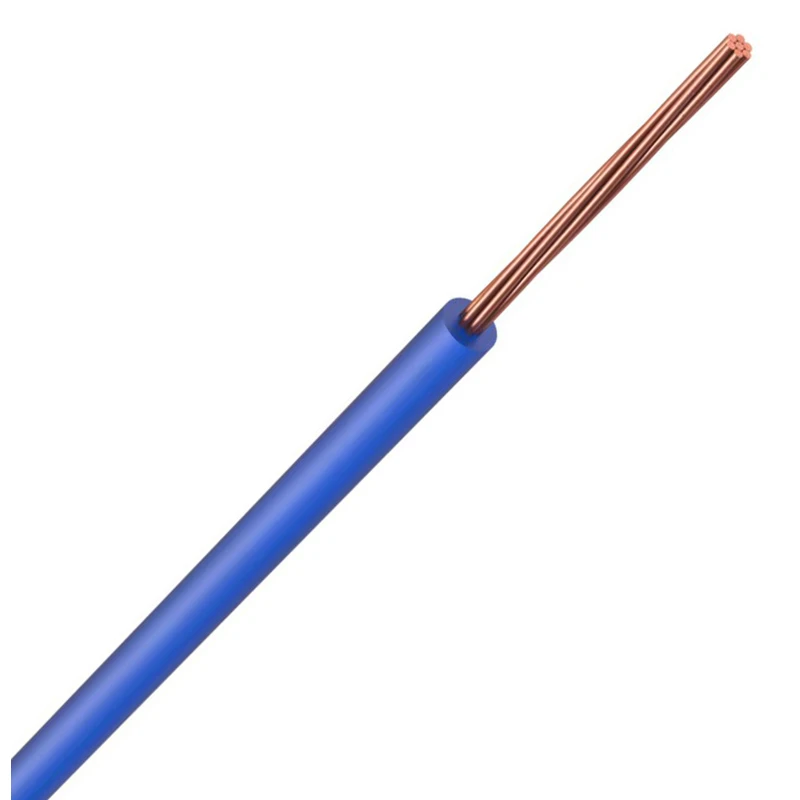

Commodity Cables 6491B 6.0mm² Blue Basec Cable Single 1-Core

Brand: Commodity CablesProduct code: 6491B-6.0-BLU100 CABLE-RXGo Magpie Ref: 5060062343779

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491B6.0 (also known as HO7Z-R) is a general purpose single core cable made up of a plain annealed copper stranded circular conductor complete with low smoke and zero halogen (LSZH) sheathing for use in conduit and trunking. Ideal in applications where fire, smoke, emissions and toxic fumes would create a potential threat · · · BS7211 LSOH Insulated non sheathed cable · · Single Core for use in conduit & trunking · · Plain annealed stranded copper conductors · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41

£139.92inc VAT£116.60 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Armouring/reinforcement None Core colour Blue Conductor material Copper Sheath colour Brown Core identification Colour Conductor surface Bare Conductor Diameter 6 mm Nominal voltage U 750 V Nominal cross sectional area of conductor 6 mm² Outer diameter approx. 4.8 mm Number of cores 1 Nominal voltage U0 450 V Permitted cable outer temperature during assembling/handling 0 – 80 °C Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Max. conductor temperature 90 °C · Technical Data Sheet – Click to Download
