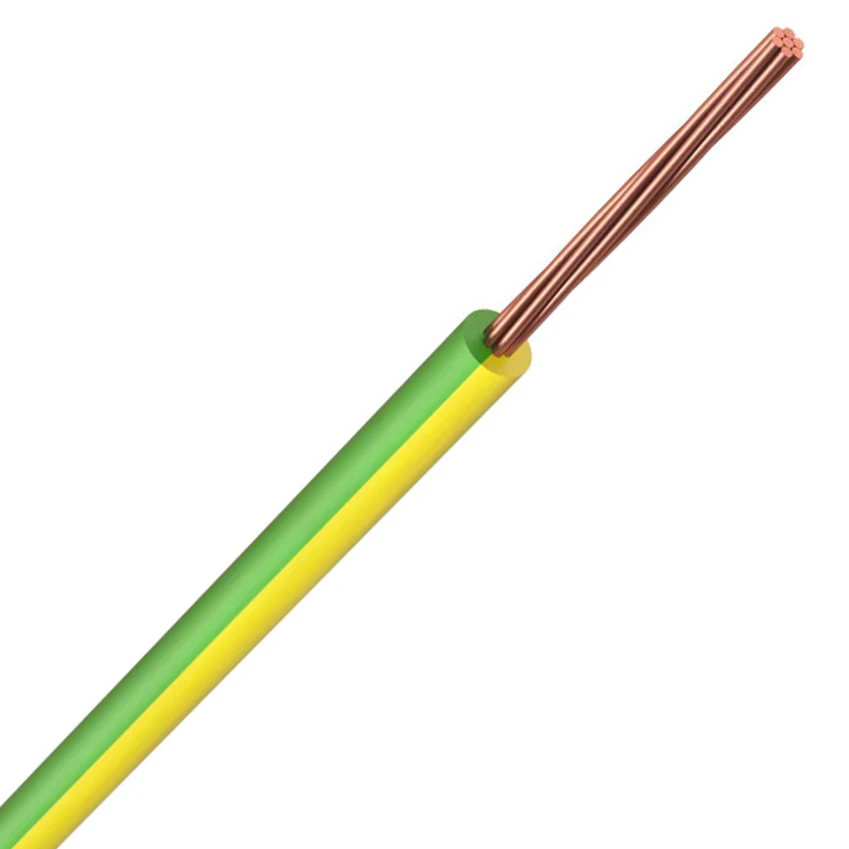

6491B 6.0mm² Green/Yellow Basec Cable 1-Core
£114.54 Incl. VAT
This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491B6.0 (also known as HO7Z-R) is a general purpose single core cable made up of a plain annealed copper stranded circular conductor complete with low smoke and zero halogen (LSZH) sheathing for use in conduit and trunking. · · · BS7211 LSOH Insulated non sheathed cable · · Single Core for use in conduit & trunking · · Plain annealed stranded copper conductors · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41
83800 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Armouring/reinforcement None Sheath colour Brown Core colour Blue Conductor material Copper Conductor Diameter 6 mm Number of cores 1 Nominal cross sectional area of conductor 6 mm² Nominal voltage U 750 V Outer diameter approx. 4.8 mm Max. conductor temperature 90 °C Conductor surface Bare Core identification Colour Nominal voltage U0 450 V Permitted cable outer temperature during assembling/handling 0 – 80 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Twisted cores No · Technical Data Sheet – Click to Download
