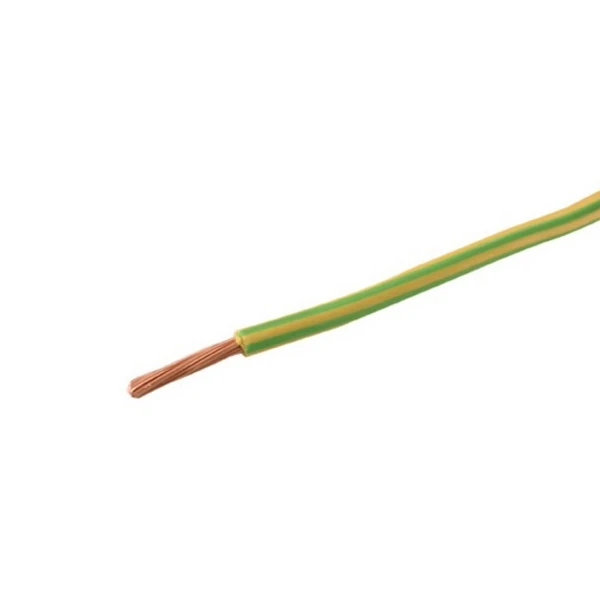

6491B 70.0mm² Green/Yellow Basec Cable 1-Core 1m
£13.22 Incl. VAT
This product is cut to specification. Hence when ordering, a mutiple of 1 needs to be entered. Single core OHLS® wiring cable designed for installation within conduit, trunking or inside fixed protected environments, such as appliances, switchgear and control gear or without mechanical protection for green/yellow earth cable. The cable is ideal as part of the wiring for non-emergency systems in public buildings where reduction in the volume of smoke and acid gas emissions is beneficial.. An extruded layer of cross-linked Zero Halogen, Low Smoke (OHLS) compound insulation · · · Cable Size: 70.0mm² · · Colour: Green/Yellow · · Length in metres: 1 · · No. of cores: 1 · · Product Packaging: Cut · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41
313 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Conductor material Copper Core colour Green/yellow Nominal cross sectional area of conductor 70 mm² Number of cores 1 Nominal voltage U 750 V Outer diameter approx. 12.8 mm · Technical Data Sheet – Click to Download
