Cable

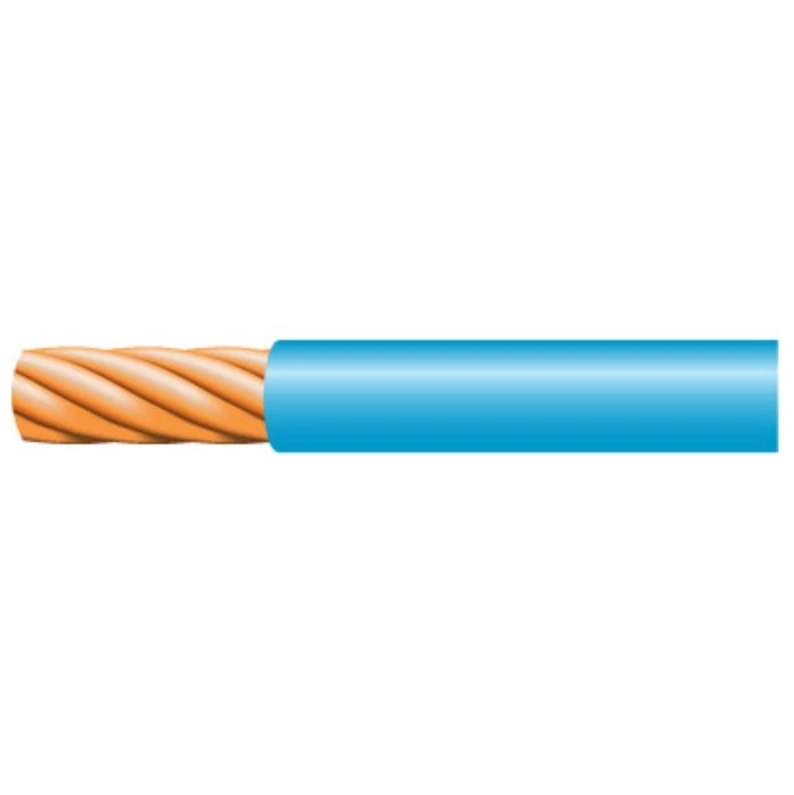

Prysmian 6491X 1.5mm² Blue PVC Basec Cable Single 1-Core 100m Roll

Brand: PrysmianProduct code: 20145134Go Magpie Ref: 5060062331420

Prysmian 6491X is a single core, low voltage wiring cable designed for installation within conduit, trunking or inside fixed protected environments · · · Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation · · Green/Yellow for use as earth can be installed without mechanical protection. · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

£52.80inc VAT£44.00 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Armouring/reinforcement None Sheath colour Blue Core colour Blue Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Conductor material Copper Conductor surface Bare Core identification Colour Nominal cross sectional area of conductor 1.5 mm² Conductor Diameter 1 mm Nominal voltage U 750 V Number of cores 1 Nominal voltage U0 450 V Min. permitted bending radius, stationary application/permanent installation 18 mm Max. conductor temperature 70 °C Outer diameter approx. 3 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Twisted cores No · Technical Data Sheet – Click to Download
