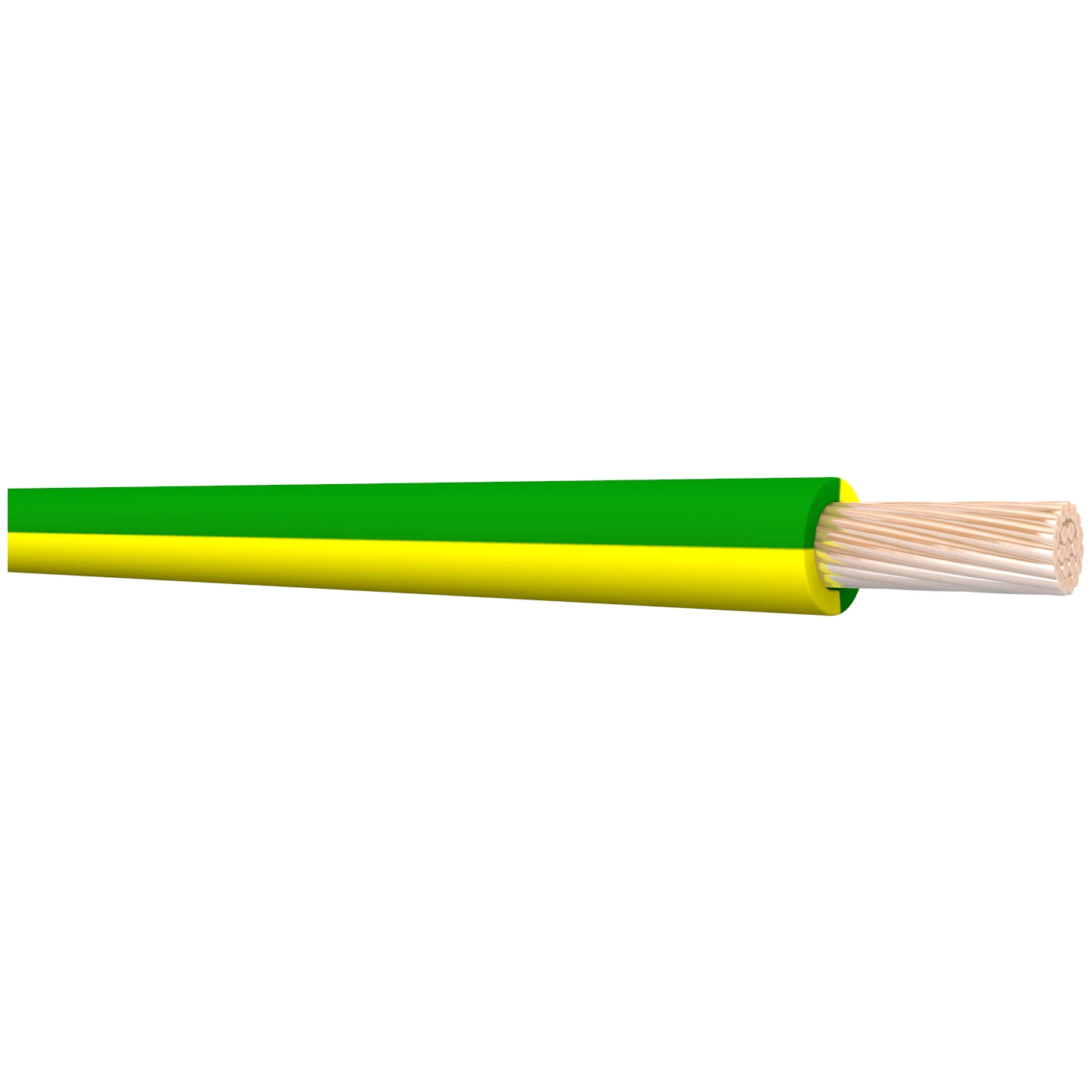

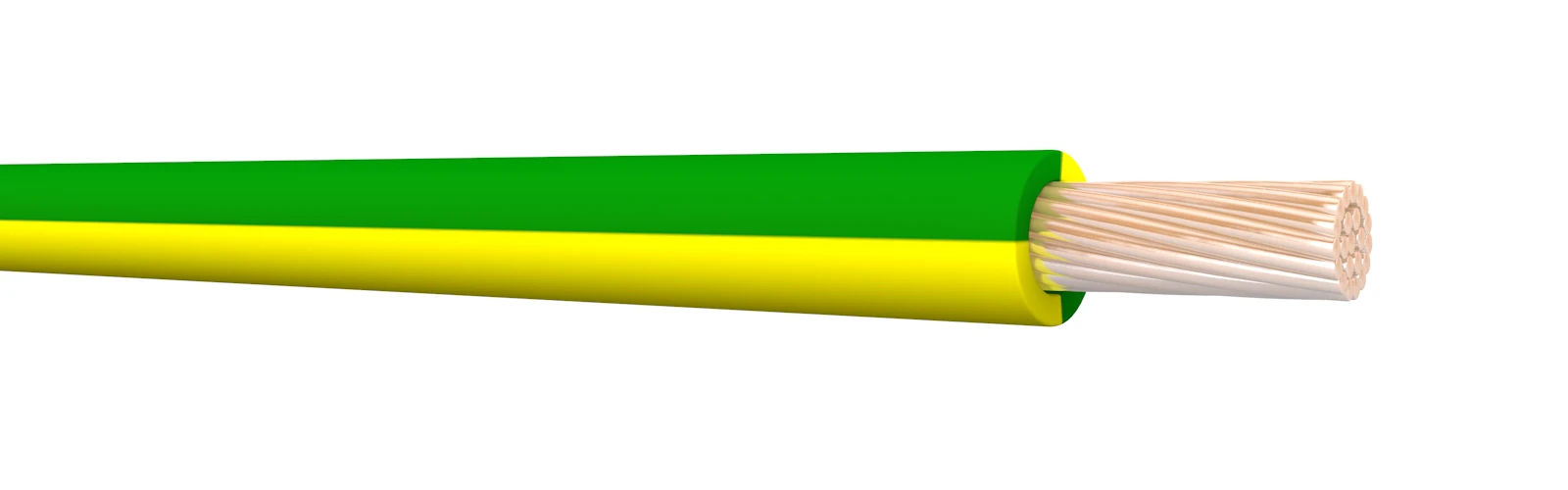

Prysmian 6491X 1.5mm² Green/Yellow PVC Basec Cable Single 1-Core
£51.06 Incl. VAT
Prysmian 6491X is a single core, low voltage wiring cable designed for installation within conduit, trunking or inside fixed protected environments · · · Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation · · Green/Yellow for use as earth can be installed without mechanical protection. · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Conductor material Copper Core colour Green/yellow Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Nominal voltage U 750 V Nominal cross sectional area of conductor 1.5 mm² Core identification Colour Min. permitted bending radius, stationary application/permanent installation 18 mm Outer diameter approx. 3 mm Nominal voltage U0 450 V Max. conductor temperature 70 °C Number of cores 1 Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
