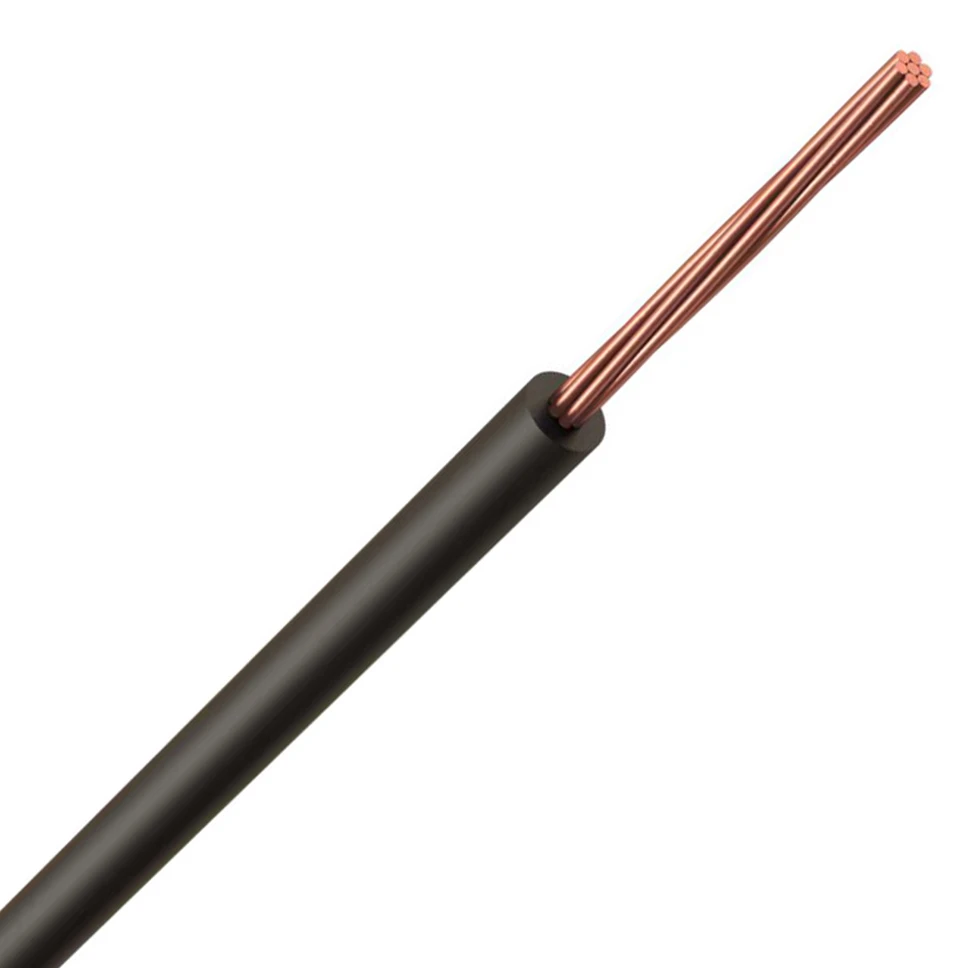

6491X 1.5mm Black PVC Basec Cable 1-Core
6491X 1.5mm Black PVC Basec Cable 1-Core
6491X 1.5mm Black PVC Basec Cable 1-Core - Image 2
6491X 1.5mm Black PVC Basec Cable 1-Core - Image 3

6491X 1.5mm Black PVC Basec Cable 1-Core

£172.50 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X1.5 is a General Purpose Single Core Cable for use in conduit and trunking. 6491X Cable also known as H07-U and H07-R is a plain annealed copper stranded circular conductor. It is installed in surface mounted or embedded conduit or similar closed sys · · · Cable Size: 1.5mm · · Colour: Black · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Cut to Various Lengths: No · · Standard: BS EN 50525-2-31 · · Material: PVC · · Standard: BS EN 50525-2-31

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-1.5 Categories: , , Brand: Part Number: 1050373123

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Blue Core colour Blue Conductor material Copper Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Armouring/reinforcement None Conductor surface Bare Conductor category Class 2 = stranded Core identification Colour Max. conductor temperature 70 °C Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U 750 V Conductor Diameter 1.5 mm Nominal voltage U0 450 V Number of cores 1 Outer diameter approx. 3 mm Min. permitted bending radius, stationary application/permanent installation 18 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
