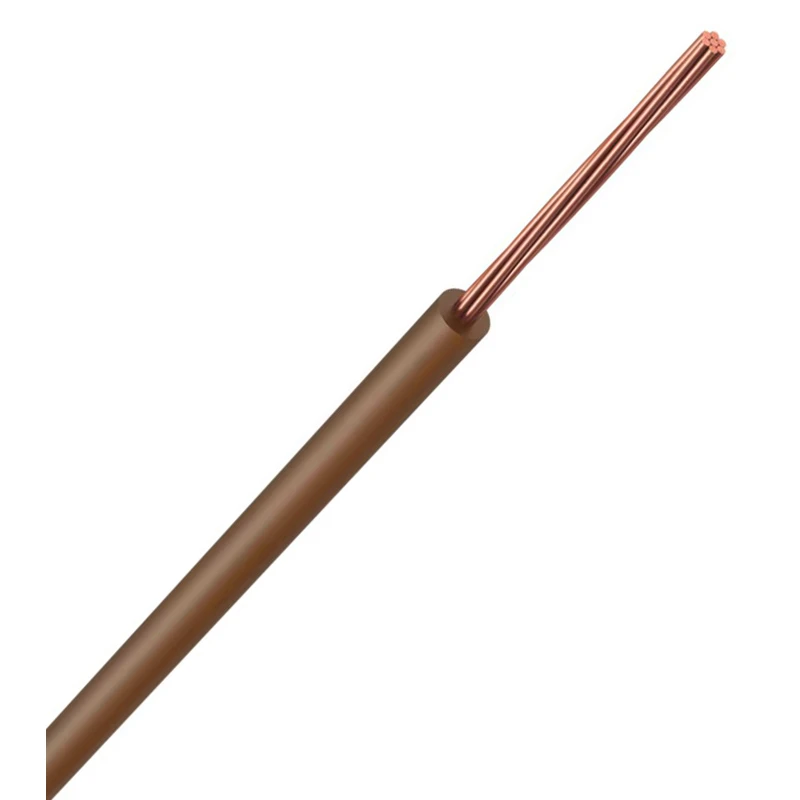

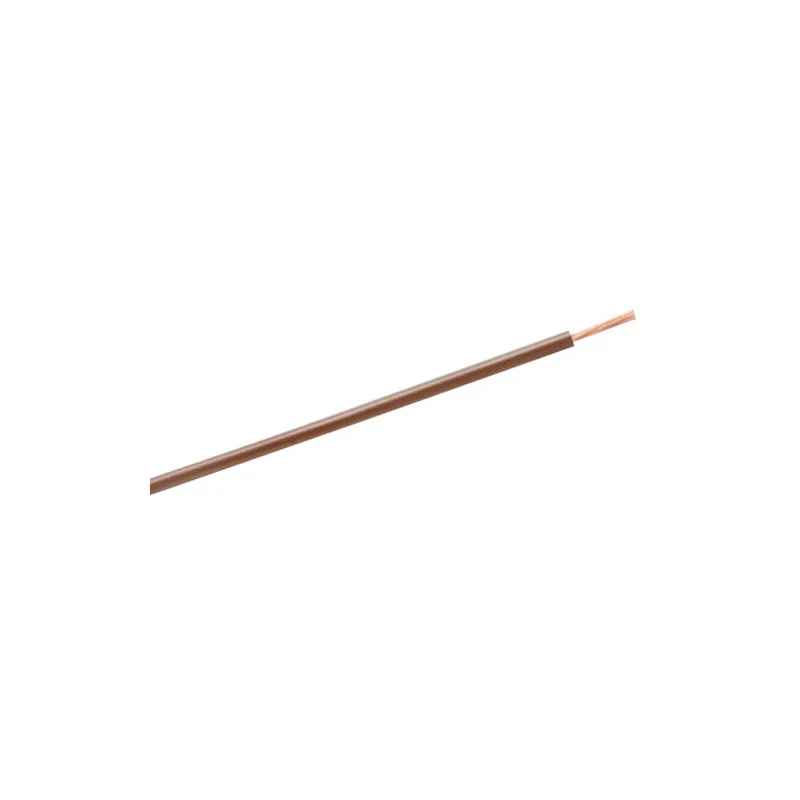

6491X 1 Core 1.5mm² Solid Cable 100m Brown
6491X 1 Core 1.5mm² Solid Cable 100m Brown
6491X 1 Core 1.5mm² Solid Cable 100m Brown - Image 2
6491X 1 Core 1.5mm² Solid Cable 100m Brown - Image 3
6491X 1 Core 1.5mm² Solid Cable 100m Brown - Image 4

6491X 1 Core 1.5mm² Solid Cable 100m Brown

£33.12 Incl. VAT

6491X solid round PVC cable used in conduit wiring for distributor boards and switchboards. 6491X cable is a single core low voltage insulated cable manufactured in accordance with BS EN 50525-2-31 (previously BS6004) and is intended for use in closed installation ducts, and in embedded or semi-flush exposed conduits. · · · 1.5mm² · · Brown · · 1 Core · · 450/750V rated · · Meets BS EN 50525-2-31:2011 standards · · Class 1 solid plain copper conductor to EN 60228 · · Length: 100m

58000 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-1.5-BRN100 CABLE-RX Categories: , , Brand: Part Number: 2500003194

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Armouring/reinforcement None Core colour Blue Sheath colour Blue Conductor material Copper Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Number of cores 1 Outer diameter approx. 3 mm Min. permitted bending radius, stationary application/permanent installation 18 mm Conductor Diameter 1.5 mm Nominal cross sectional area of conductor 1.5 mm² Conductor surface Bare Core identification Colour Max. conductor temperature 70 °C Nominal voltage U0 450 V Nominal voltage U 750 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
