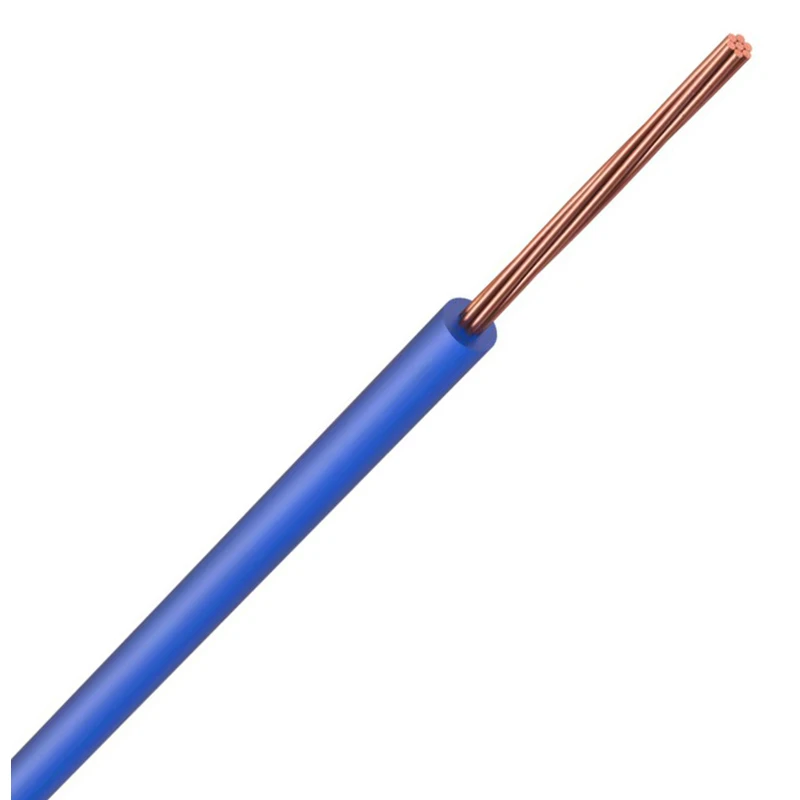

Commodity Cables 6491X 10.0mm² Blue PVC Basec Cable Single 1-Core
Commodity Cables 6491X 10.0mm² Blue PVC Basec Cable Single 1-Core
Commodity Cables 6491X 10.0mm² Blue PVC Basec Cable Single 1-Core - Image 2
Commodity Cables 6491X 10.0mm² Blue PVC Basec Cable Single 1-Core - Image 3
Commodity Cables 6491X 10.0mm² Blue PVC Basec Cable Single 1-Core - Image 4

Commodity Cables 6491X 10.0mm² Blue PVC Basec Cable Single 1-Core

Pack of 100

£262.68 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X10.0 is a General Purpose Single Core Cable for use in conduit and trunking. 6491X Cable also known as H07-U and H07-R is a plain annealed copper stranded circular conductor. It is installed in surface mounted or embedded conduit or similar closed sy · · · Cable Size: 10.0mm² · · Colour: Blue · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-10.0-BLU100 CABL-RX Categories: , Brand: Product Code: 2500001689

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Grey Conductor category Class 2 = stranded Conductor material Copper Core colour Blue Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Conductor Diameter 10 mm Core identification Colour Nominal cross sectional area of conductor 10 mm² Nominal voltage U 750 V Max. conductor temperature 70 °C Min. permitted bending radius, stationary application/permanent installation 38 mm Nominal voltage U0 450 V Outer diameter approx. 6.3 mm Number of cores 1 Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
