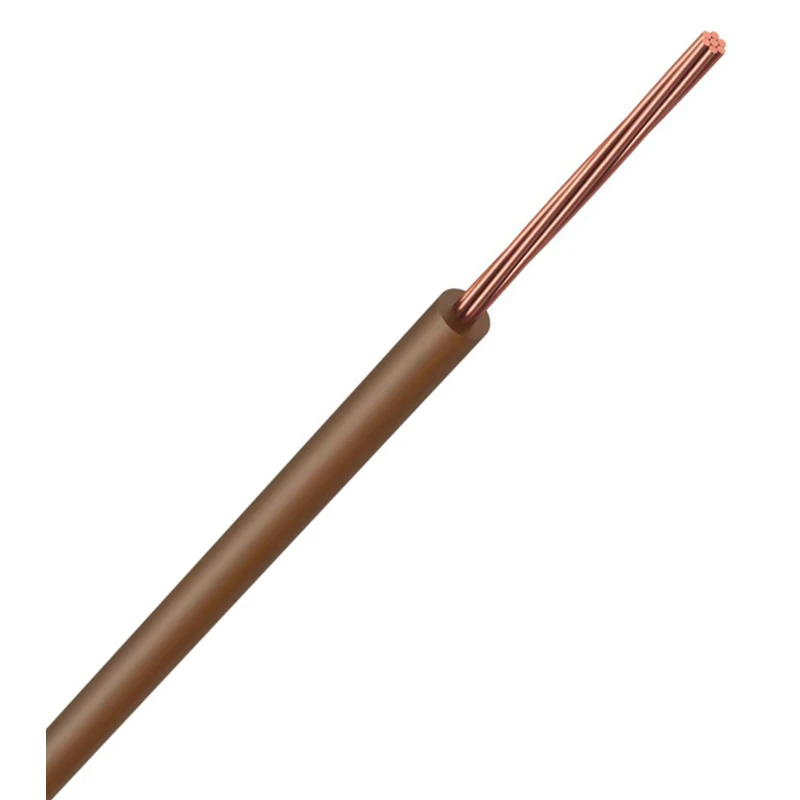

6491X 10.0mm² Brown PVC Basec Cable 1-Core
6491X 10.0mm² Brown PVC Basec Cable 1-Core
6491X 10.0mm² Brown PVC Basec Cable 1-Core - Image 2
6491X 10.0mm² Brown PVC Basec Cable 1-Core - Image 3
6491X 10.0mm² Brown PVC Basec Cable 1-Core - Image 4

6491X 10.0mm² Brown PVC Basec Cable 1-Core

£213.90 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X10.0 is a General Purpose Single Core Cable for use in conduit and trunking. 6491X Cable also known as H07-U and H07-R is a plain annealed copper stranded circular conductor. It is installed in surface mounted or embedded conduit or similar closed sy · · · Cable Size: 10.0mm² · · Colour: Brown · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

200 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-10.0-BRN100 CABL-RX Categories: , , Brand: Part Number: 2500003333

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Sheath colour Grey Core colour Blue Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Core identification Colour Conductor Diameter 10 mm Nominal voltage U0 450 V Max. conductor temperature 70 °C Outer diameter approx. 6.3 mm Min. permitted bending radius, stationary application/permanent installation 38 mm Number of cores 1 Nominal cross sectional area of conductor 10 mm² Conductor surface Bare Nominal voltage U 750 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
