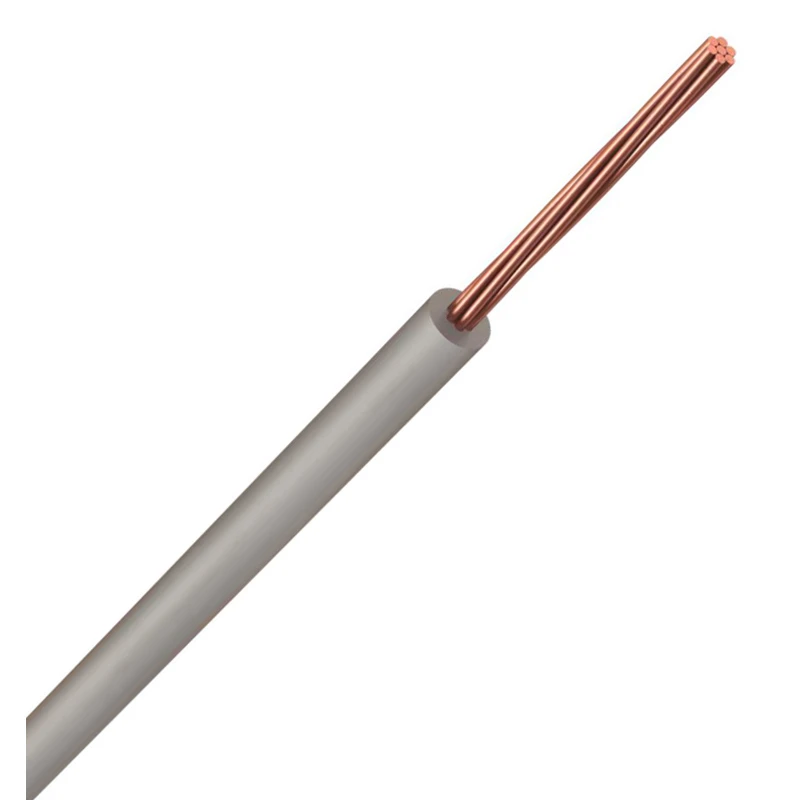

Product image supplied by the manufacturer
Cable

Commodity Cables 6491X 10.0mm² Grey PVC Basec Cable Single 1-Core

Brand: Commodity CablesProduct code: 6491X-10.0-GRY100 CABL-RXGo Magpie Ref: 5060062344654

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X10.0 is a General Purpose Single Core Cable for use in conduit and trunking. 6491X Cable also known as H07-U and H07-R is a plain annealed copper stranded circular conductor. It is installed in surface mounted or embedded conduit or similar closed sy · · · Cable Size: 10.0mm² · · Colour: Grey · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Cut to Various Lengths: No · · Standard: BS EN 50525-2-31 · · Material: PVC · · Standard: BS EN 50525-2-31

£299.64inc VAT£249.70 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Grey Conductor category Class 2 = stranded Core colour Blue Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Conductor surface Bare Core identification Colour Conductor Diameter 10 mm Nominal cross sectional area of conductor 10 mm² Nominal voltage U 750 V Number of cores 1 Nominal voltage U0 450 V Max. conductor temperature 70 °C Min. permitted bending radius, stationary application/permanent installation 38 mm Outer diameter approx. 6.3 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
