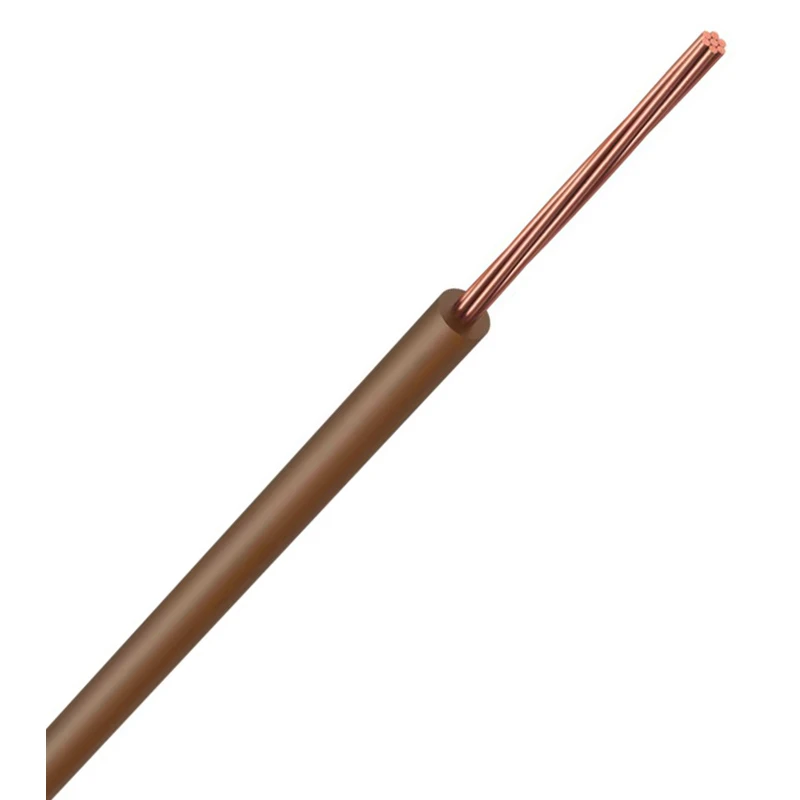

6491X 16.0mm² Brown PVC Basec Cable 1-Core
6491X 16.0mm² Brown PVC Basec Cable 1-Core
6491X 16.0mm² Brown PVC Basec Cable 1-Core - Image 2
6491X 16.0mm² Brown PVC Basec Cable 1-Core - Image 3
6491X 16.0mm² Brown PVC Basec Cable 1-Core - Image 4

6491X 16.0mm² Brown PVC Basec Cable 1-Core

£336.72 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X16.0 is a General Purpose Single Core Cable for use in conduit and trunking. 6491X Cable also known as H07-U and H07-R is a plain annealed copper stranded circular conductor. It is installed in surface mounted or embedded conduit or similar closed sy. Minimum bending radius is 3 x overall diameter · · · Cable Size: 16.0mm² · · Colour: Brown · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

100 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-16.0-BRN100 CABL-RX Categories: , , Brand: Part Number: 2500003334

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Core colour Blue Sheath colour Brown Nominal voltage U0 450 V Nominal voltage U 750 V Conductor Diameter 16 mm Nominal cross sectional area of conductor 16 mm² Conductor surface Bare Core identification Colour Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Min. permitted bending radius, stationary application/permanent installation 42 mm Outer diameter approx. 6.9 mm Number of cores 1 Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
