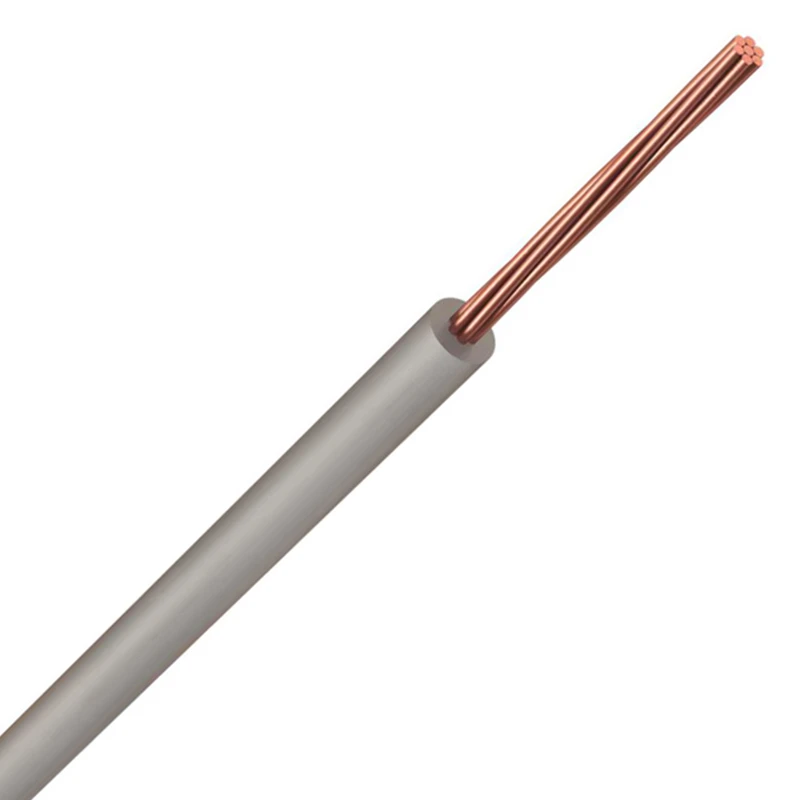

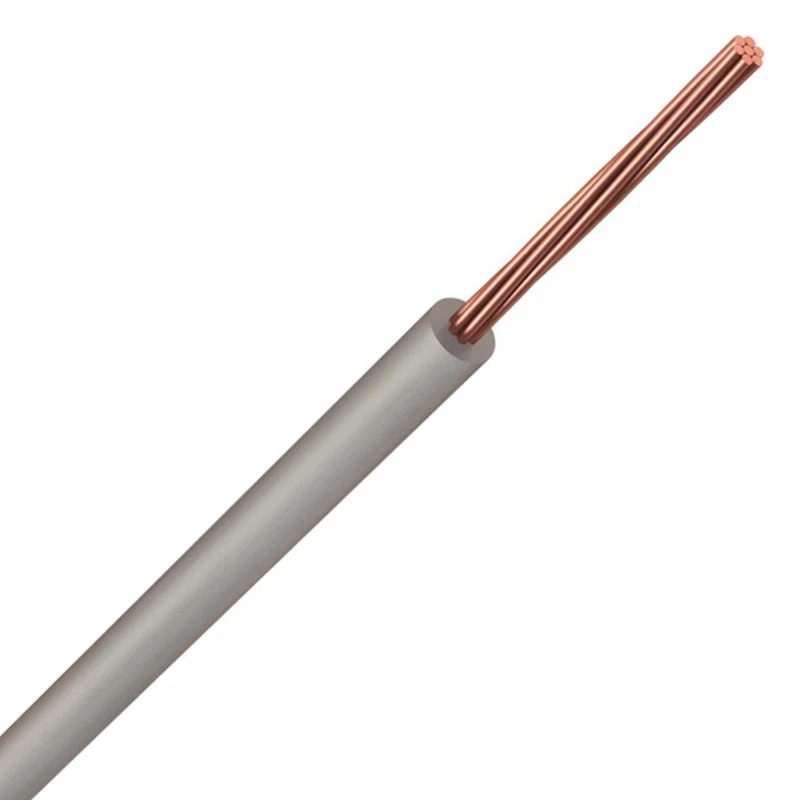

Commodity Cables 6491X 16.0mm² Grey PVC Basec Cable Single 1-Core
Commodity Cables 6491X 16.0mm² Grey PVC Basec Cable Single 1-Core
Commodity Cables 6491X 16.0mm² Grey PVC Basec Cable Single 1-Core - Image 2
Commodity Cables 6491X 16.0mm² Grey PVC Basec Cable Single 1-Core - Image 3
Commodity Cables 6491X 16.0mm² Grey PVC Basec Cable Single 1-Core - Image 4

Commodity Cables 6491X 16.0mm² Grey PVC Basec Cable Single 1-Core

Pack of 100

£411.84 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X16.0 is a General Purpose Single Core Cable for use in conduit and trunking. 6491X Cable also known as H07-U and H07-R is a plain annealed copper stranded circular conductor. It is installed in surface mounted or embedded conduit or similar closed sy · · · Cable Size: 16.0mm² · · Colour: Grey · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-16.0-GRY100 CABL-RX Categories: , Brand: Product Code: 2500142597

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Core colour Blue Conductor material Copper Sheath colour Brown Core insulation material Polyvinyl chloride (PVC) Conductor surface Bare Core identification Colour Nominal cross sectional area of conductor 16 mm² Min. permitted bending radius, stationary application/permanent installation 42 mm Max. conductor temperature 70 °C Number of cores 1 Conductor Diameter 16 mm Outer diameter approx. 6.9 mm Nominal voltage U 750 V Nominal voltage U0 450 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
