6491X 25.0mm² Green/Yellow PVC Basec Cable 1-Core 100m Roll
6491X 25.0mm² Green/Yellow PVC Basec Cable 1-Core 100m Roll
6491X 25.0mm² Green/Yellow PVC Basec Cable 1-Core 100m Roll - Image 2

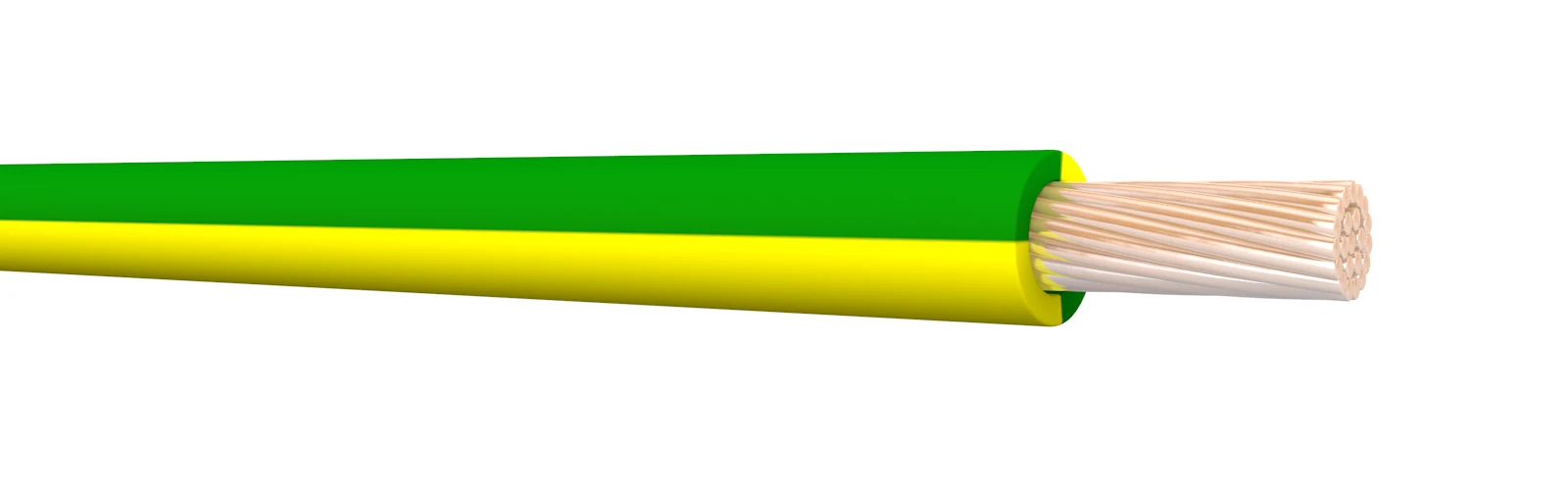

6491X 25.0mm² Green/Yellow PVC Basec Cable 1-Core 100m Roll - Image 3

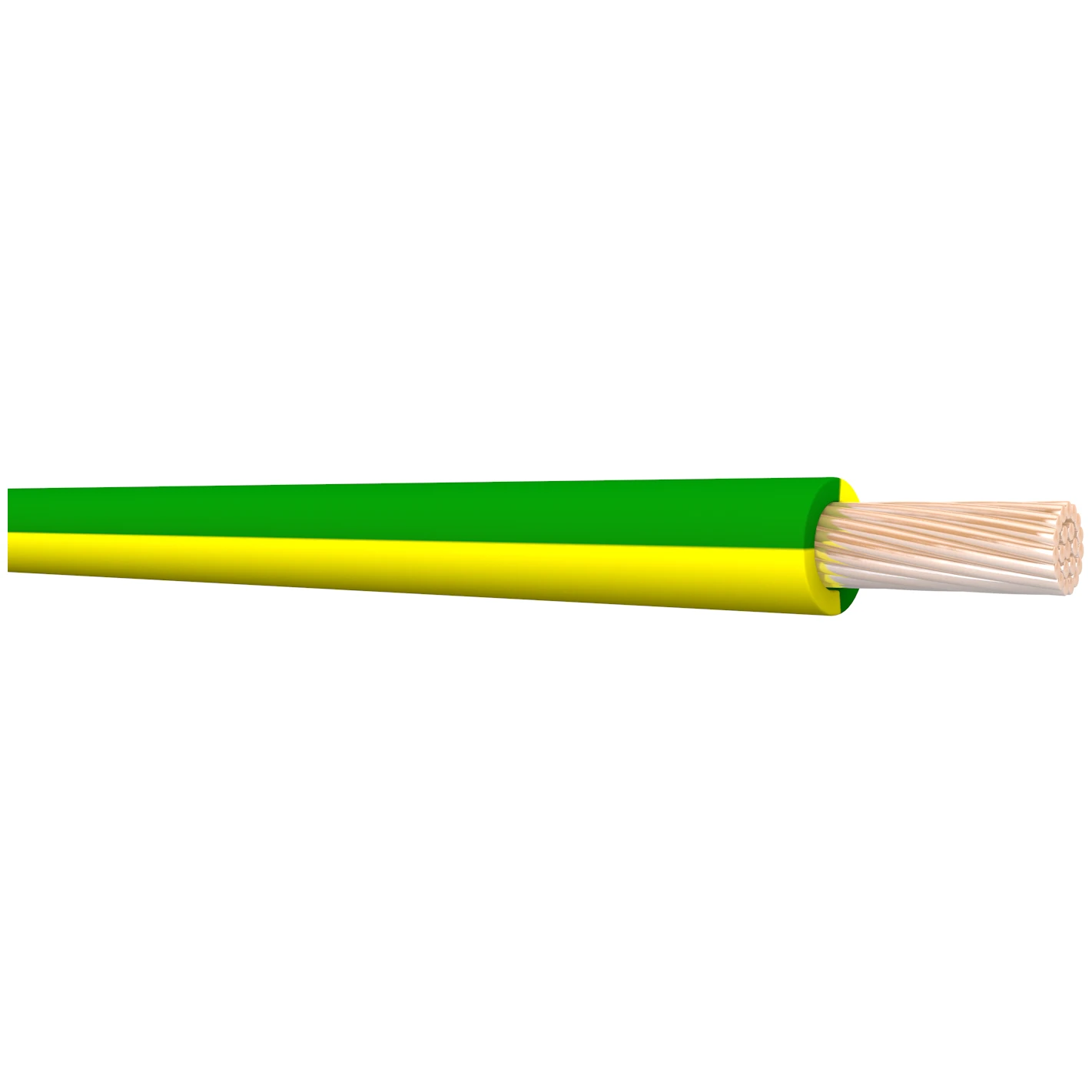

6491X 25.0mm² Green/Yellow PVC Basec Cable 1-Core 100m Roll

£6.70 Incl. VAT

Prysmian 6491X is a single core, low voltage wiring cable designed for installation within conduit, trunking or inside fixed protected environments · · · Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation · · Green/Yellow for use as earth can be installed without mechanical protection. · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20145628 Categories: , , Brand: Part Number: 2500019608

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Core identification Colour Core colour Green/yellow Conductor surface Bare Nominal cross sectional area of conductor 25 mm² Nominal voltage U0 450 V Nominal voltage U 750 V Number of cores 1 Max. conductor temperature 70 °C Min. permitted bending radius, stationary application/permanent installation 50 mm Outer diameter approx. 8.3 mm Permitted cable outer temperature during assembling/handling 0 - 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
