Cable

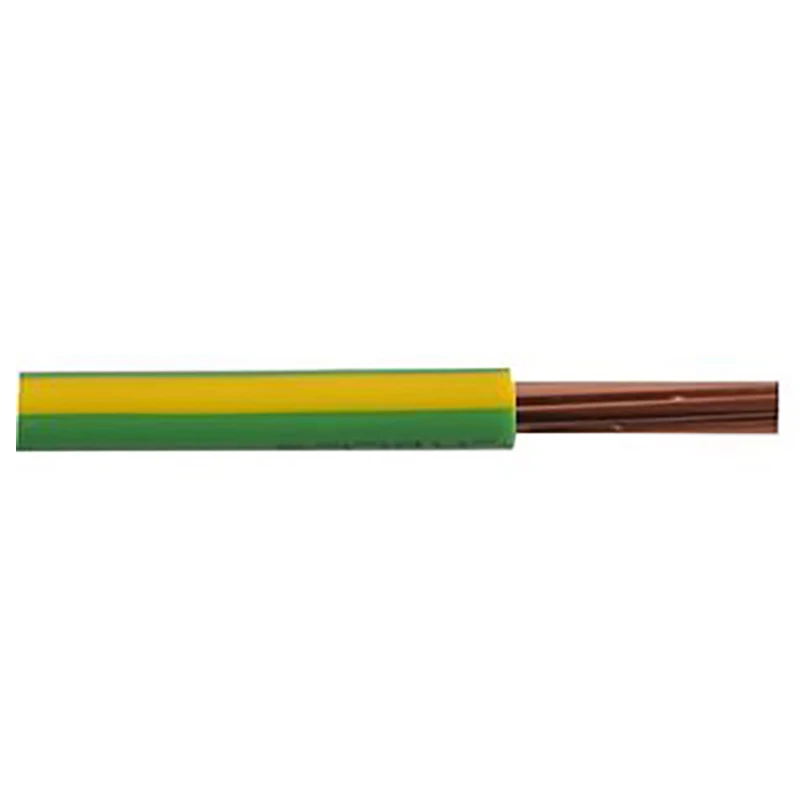

RX-Cable 6491X 25.0mm² Green/Yellow PVC Basec Cable 1-Core 1m

Brand: RX-CableProduct code: 6491X-25.0 GRN/YELLGo Magpie Ref: 5060062331227

This product is cut to specification. Hence when ordering, a mutiple of 1 needs to be entered. · · · BS6004 PVC Insulated non sheathed cable · · Single Core for use in conduit & trunking · · Plain annealed stranded copper conductors · · No. of cores: 1 · · Product Packaging: Cut · · Material: PVC · · Standard: BS EN 50525-2-31

£7.38inc VAT£6.15 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Green/yellow Conductor material Copper Core identification Colour Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Conductor category Class 2 = stranded Outer diameter approx. 8.3 mm Nominal voltage U 750 V Nominal cross sectional area of conductor 25 mm² Min. permitted bending radius, stationary application/permanent installation 50 mm Conductor Diameter 25 mm Nominal voltage U0 450 V Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
