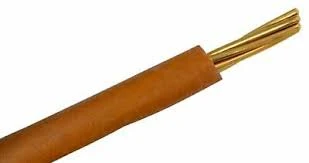

6491X 4.0mm² Brown PVC Basec Cable 1-Core
6491X 4.0mm² Brown PVC Basec Cable 1-Core
6491X 4.0mm² Brown PVC Basec Cable 1-Core - Image 2

6491X 4.0mm² Brown PVC Basec Cable 1-Core

£441.60 Incl. VAT

This product is packaged as 500m Reel. Hence when ordering, a mutiple of 500 needs to be entered. · · · Cable Size: 4.0mm² · · Colour: Brown · · Length in metres: 500 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-4.0-BRN500 CABLE-RX Categories: , , Brand: Part Number: 1050373137

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Blue Conductor material Copper Sheath colour Blue Number of cores 1 Nominal cross sectional area of conductor 4 mm² Conductor category Class 2 = stranded Core identification Colour Conductor surface Bare Armouring/reinforcement None Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Conductor Diameter 4 mm Max. conductor temperature 70 °C Nominal voltage U0 450 V Nominal voltage U 750 V Min. permitted bending radius, stationary application/permanent installation 26 mm Outer diameter approx. 4.2 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
